Large Coil Surface in Compact Footprint
The V-shaped coil arrangement increases heat transfer area without requiring a long single flat coil layout.

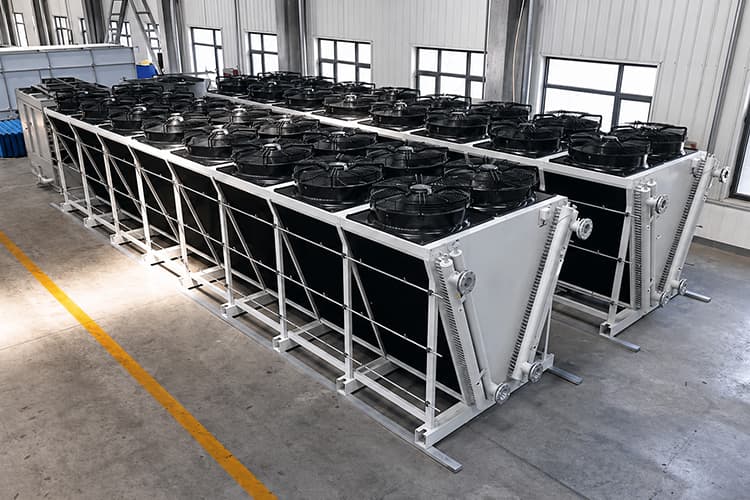

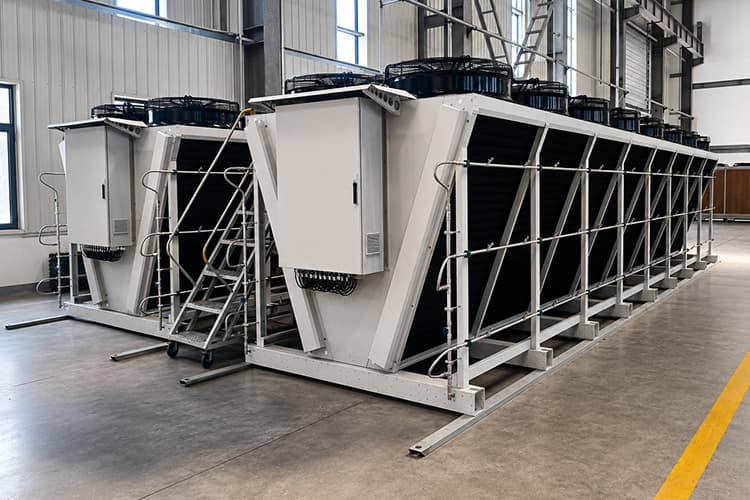

V Type Dry Cooler
V Type Dry Cooler
Thermocore V type dry coolers are designed for HVAC systems, industrial process cooling, data center free cooling, closed-loop glycol systems, compressor cooling and manufacturing facilities where reliable air-cooled heat rejection and low water consumption are important.
The V-shaped coil arrangement provides large heat transfer surface area within a compact footprint. Process fluid or glycol remains inside the finned tube coils, while axial fans move ambient air across the coil banks to reject heat without an open evaporative water loop during standard dry operation.
Product Overview
V Type Dry Cooler Overview
A V type dry cooler is an air-cooled heat exchanger that uses V-shaped finned tube coils and axial fans to reject heat from a closed fluid loop. The process fluid stays inside the coil, while ambient air flows across the external fin surface. Heat is rejected to the air by sensible heat transfer rather than open evaporative cooling.
This product is suitable for projects that need low water consumption, closed-loop fluid protection, simple outdoor operation, free cooling potential and reduced water treatment requirements compared with open cooling towers.
Cooling TypeAir-cooled sensible heat rejection
Coil LayoutV-shaped finned tube coil banks
Fluid LoopClosed-loop water or glycol
Heat Exchange CoreFinned coils + axial fans + ambient air
Main BenefitLow water use and compact capacity
Working Principle
How Does a V Type Dry Cooler Work?
The system rejects heat through dry air cooling. Hot fluid flows inside the finned tube coils. Axial fans move outdoor air through the V-shaped coil banks. Heat transfers from the fluid to the coil tubes, from the tubes to the fins, and from the fins to the air stream.
1
Hot fluid enters the coilWater, glycol or process fluid enters the closed finned tube coil circuit.
2
Fluid flows through V-shaped coil banksThe V layout provides large heat transfer surface in a compact arrangement.
3
Fans move ambient air across finsAxial fans create airflow through the coil surface.
4
Sensible heat is rejected to airHeat transfers from fluid to tube, fin and outdoor air.
5
Cooled fluid returns to the systemThe fluid remains in a closed loop and returns to the process or heat exchanger.
V Type Design
Why Choose a V Type Dry Cooler?
V type design is selected when a project needs dry air-cooled heat rejection with higher coil surface area in a compact footprint. It is especially useful for closed-loop cooling systems where water use, plume, spray water treatment or open-loop contamination should be reduced.
Low Water Consumption
Standard dry operation rejects heat without an open evaporative water loop or continuous make-up water.
Closed-Loop Fluid Protection
Water or glycol stays inside the coil circuit and is not exposed to outside air.
Free Cooling Potential
Can support free cooling when ambient air temperature is low enough to reduce or bypass chiller operation.
Suitable for Outdoor Installation
V type dry coolers are designed for rooftop, ground-mounted and industrial outdoor installations.
Custom Fan and Control Options
Fan speed control, EC fans, low-noise design, coil coatings and control panels can be customized.
Applications
Applications of V Type Dry Coolers
V type dry coolers are used where a closed fluid loop needs to reject heat to ambient air with little or no water consumption. They are suitable for HVAC, industrial process cooling, data center cooling and energy-saving free cooling systems.
Compressor
Data Center
HVAC
Industrial Process
Industrial Refrigeration
Pharmaceutical
Plastic Processing
Power Plant
V Type Dry Coolers Application Image Placeholder
Comparison
V Type Dry Cooler vs Horizontal Dry Cooler
V type and horizontal dry coolers both reject heat through finned coils and ambient air. The main differences are coil arrangement, footprint, airflow layout, capacity density and installation preference.
| Item | V Type Dry Cooler | Horizontal Dry Cooler |
|---|---|---|
| Coil Arrangement | Two angled coil banks arranged in a V shape | Flat or horizontal coil layout depending on design |
| Capacity Density | Higher coil surface area within a compact footprint | Usually suitable for lower profile or specific airflow layouts |
| Footprint | Compact for medium to large heat rejection loads | Can require longer layout depending on capacity |
| Airflow Path | Air passes through angled coil banks and fan section | Airflow depends on flat coil and fan arrangement |
| Best For | Higher capacity outdoor dry cooling and free cooling projects | Low-profile installations or projects with specific height limitations |
| Selection Logic | Choose when capacity, compact footprint and coil area are priorities | Choose when profile, airflow direction or site layout requires it |
System Comparison
V Type Dry Cooler vs Cooling Tower vs Adiabatic Cooler
These three heat rejection solutions serve different project priorities. A V type dry cooler minimizes water use, a cooling tower provides evaporative cooling closer to wet bulb temperature, and an adiabatic cooler combines dry cooling with limited water-assisted pre-cooling during hot conditions.
| Item | V Type Dry Cooler | Cooling Tower | Adiabatic Cooler |
|---|---|---|---|
| Cooling Method | Sensible air cooling through finned coils | Evaporative cooling with water exposed to air | Dry cooling with water-assisted air pre-cooling when needed |
| Water Use | Very low or none in standard dry operation | Continuous make-up water required | Lower than cooling tower, higher than dry-only operation |
| Fluid Protection | Closed-loop fluid inside coils | Open water loop in many systems | Closed-loop fluid inside coils |
| Temperature Limit | Limited by ambient dry bulb temperature | Limited by wet bulb temperature | Can approach lower temperatures than dry-only operation |
| Best For | Low-water closed-loop cooling and free cooling | Lowest practical evaporative water temperature | Projects balancing water saving and hot-weather performance |
Technical Selection
Technical Selection Guide
Selecting a V type dry cooler requires fluid data, ambient air conditions and project layout information. A professional selection should consider heat load, fluid type, glycol concentration, flow rate, inlet and outlet temperatures, dry bulb temperature, altitude, fan noise, coil material and control strategy.
| Parameter | Why It Matters |
|---|---|
| Heat Rejection Capacity | Determines dry cooler size and required heat transfer capability. |
| Fluid Type | Water, glycol or process fluid affects heat transfer and pressure drop. |
| Glycol Concentration | Affects viscosity, freezing point, coil sizing and pump power. |
| Fluid Flow Rate | Influences coil circuiting, pressure drop and heat transfer. |
| Inlet Fluid Temperature | Defines the hot-side operating condition. |
| Outlet Fluid Temperature | Defines the required cooling target. |
| Design Dry Bulb Temperature | Main ambient condition for dry cooler performance. |
| Altitude | Affects air density and fan/coil performance. |
| Noise Requirement | Affects fan size, speed, quantity and control mode. |
| Installation Space | Determines unit layout, airflow clearance and service access. |
| Control Strategy | Fan staging or speed control affects energy use and outlet temperature stability. |
Key Components
Key Components of a V Type Dry Cooler
Performance depends on the finned coils, fans, casing, frame, fluid headers, controls and airflow clearance. Each component should support stable heat rejection, long service life and practical maintenance.

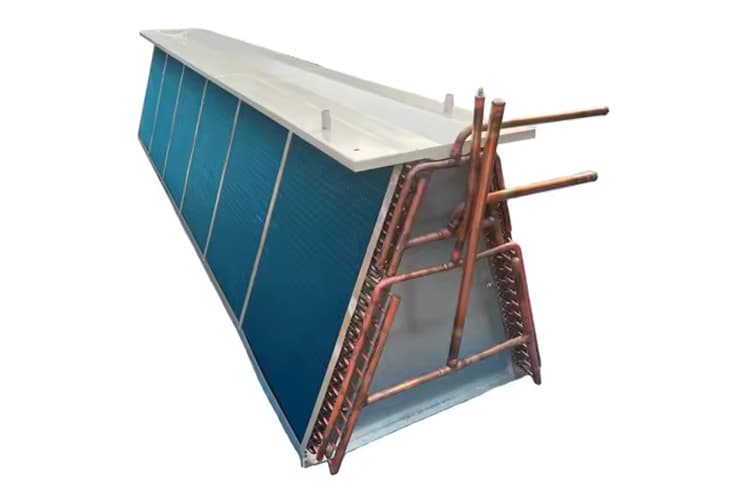

V-Shaped Finned Coils
The core heat exchange section where fluid heat is transferred to air.
Axial Fan
Moves ambient air across the coil banks to remove heat.
Fluid Headers and Connections
Distributes fluid into coil circuits and collect cooled fluid from the unit.
Fan Motor and Drive System
Provides fan power and can be configured for fixed speed, staged or variable speed operation.
Casing and Frame
Support the coils and fans and protect the unit in outdoor environments.
Material Options
Material Options
Material selection affects corrosion resistance, heat transfer, service life and maintenance cost. The best configuration depends on fluid type, ambient environment, coastal exposure, industrial pollution and budget.
Coil Materials
Coil material should match heat transfer requirements, fluid compatibility and corrosion environment.
Copper tube
Aluminum fin
Stainless steel tube
Epoxy-coated fins
Casing and Frame Materials
Casing and structural materials should match outdoor exposure, corrosion environment and export requirements.
Galvanized steel
Aluzinc steel
Stainless steel options
Fan and Electrical Options
Fan and control selections affect energy consumption, noise level, temperature stability and part-load performance.
AC fan
EC fan
Variable speed control
Low-noise option
Maintenance
Maintenance and Operation Considerations
A V type dry cooler requires less water-side maintenance than evaporative equipment, but coil cleanliness and airflow management are critical. Dust, leaves, industrial particles and blocked air paths can reduce heat transfer and increase fan energy use.
Coil Cleaning
Finned coils should be kept clean to maintain airflow and heat transfer efficiency.
- Inspect fin surface
- Remove dust and debris
- Avoid fin damage during cleaning
Fan and Electrical Check
Fans, motors, guards, wiring and control systems should be inspected regularly.
- Check fan operation
- Inspect motor condition
- Verify control signals
Fluid Loop Management
Closed-loop fluid condition affects corrosion, freezing protection and heat transfer.
- Check glycol concentration
- Monitor inhibitors
- Inspect leaks and pressure
Advantages
Performance Advantages
V type dry coolers are selected when customers need low-water air-cooled heat rejection, closed-loop fluid protection and flexible outdoor installation.
Low Water Use
Standard dry operation avoids continuous evaporative make-up water.
Closed Fluid Loop
Fluid remains inside the coil and is not exposed to air or spray water.
Compact Capacity
V-shaped coil banks provide large surface area within a practical footprint.
Free Cooling Potential
Can reduce chiller operation when outdoor air temperature is favorable.
No Plume in Dry Operation
Dry heat rejection avoids visible evaporative plume under normal dry operation.
Reduced Water Treatment
No open spray water loop is required in standard dry cooling mode.
Flexible Controls
Fan staging, VFD or EC fan options can improve part-load efficiency.
Outdoor Reliability
Designed for rooftop, ground-mounted and industrial outdoor installation.
Custom Engineering
Custom Engineering Options
Thermocore can customize V type dry coolers according to heat rejection capacity, fluid type, coil material, fan configuration, noise requirement, control strategy, casing material, installation layout and export shipping requirements.
Thermal Customization
For projects with special heat load, fluid temperature, approach or ambient dry bulb requirements.
Heat rejection
Flow rate
Approach temperature
Dry bulb design
Coil & Material Customization
For corrosion resistance, glycol operation, special fluid compatibility and harsh environments.
Copper / aluminum coil
Stainless coil
Coated fins
Anti-corrosion design
Fan & Control Customization
For low noise, energy saving, part-load control, special voltage and BMS integration.
EC fans
VFD control
Low-noise fans
BMS signal
Not Sure Whether V Type Dry Cooler Is Right for Your Project?
Send your heat rejection capacity, fluid type, glycol concentration, flow rate, inlet and outlet temperature, design dry bulb temperature and installation layout. Our engineering team will compare V type dry cooler, horizontal dry cooler, adiabatic cooler and cooling tower options for your project.
Heat rejection
Fluid / glycol
Flow rate
Dry bulb
Noise requirement
FAQ
V Type Dry Cooler FAQ
These FAQs are written for HVAC engineers, industrial buyers, data center teams and contractors who need to understand V type dry cooler selection, operation, controls, maintenance and customization.
What is a V type dry cooler?
A V type dry cooler is an air-cooled heat rejection unit with finned tube coils arranged in a V-shaped configuration. Process fluid, water or glycol flows inside the coil, while ambient air is drawn or pushed across the finned coil surface by axial fans. Heat transfers from the fluid to the coil tubes and fins, then to the outdoor air. Unlike open cooling towers or evaporative condensers, a dry cooler normally rejects heat without direct water evaporation.
How does a V type dry cooler work?
Hot fluid enters the finned tube coil and flows through the closed coil circuit. Axial fans move ambient air across the V-shaped coil banks. Heat transfers from the fluid to the tube wall, from the tube to the fins, and then from the fins to the air stream. The cooled fluid leaves the coil and returns to the chiller, process equipment, heat exchanger, data center loop or industrial cooling system.
Why choose a V type dry cooler?
A V type dry cooler is selected when the project requires closed-loop fluid cooling, low water consumption, outdoor air-cooled heat rejection and a compact high-capacity coil arrangement. The V-shaped coil layout provides more coil surface area within a practical footprint, making it suitable for HVAC, process cooling, free cooling and industrial systems where water use or water treatment should be minimized.
What is the difference between a V type dry cooler and a horizontal dry cooler?
A V type dry cooler uses V-shaped coil banks with fans typically arranged above the coil section, allowing large coil surface area in a compact footprint. A horizontal dry cooler usually uses flat horizontal or vertical coil arrangements depending on design. V type units are often preferred for higher capacity and compact outdoor installation, while horizontal dry coolers can be useful for lower profile installations or specific airflow layouts.
What is the difference between a dry cooler and a cooling tower?
A dry cooler rejects heat through sensible air cooling over finned coils and keeps the process fluid inside a closed coil circuit. A cooling tower rejects heat mainly through evaporative cooling and normally uses water exposed to air. Dry coolers use little or no water during normal operation, while cooling towers can achieve lower fluid temperatures closer to wet bulb temperature but require make-up water and water treatment.
What is the difference between a V type dry cooler and an adiabatic cooler?
A standard V type dry cooler uses ambient air only to cool the fluid. An adiabatic cooler adds a pre-cooling or wetted media system to reduce the air temperature before it reaches the coil during hot conditions. Adiabatic coolers can provide lower fluid temperatures than dry-only operation, but they use some water and require additional water-side maintenance.
What information is needed for model selection?
Important selection data includes heat rejection capacity, fluid type, glycol concentration if applicable, fluid flow rate, inlet fluid temperature, required outlet fluid temperature, design dry bulb temperature, altitude, project location, installation space, noise requirement, power supply and material preference.
Why is dry bulb temperature important for dry cooler selection?
Dry bulb temperature is the main ambient design condition for dry coolers because the unit rejects heat through sensible air cooling. The leaving fluid temperature is limited by the ambient dry bulb temperature and the selected approach. A high design dry bulb temperature requires a larger coil area, more airflow or a higher allowed outlet fluid temperature.
What materials are commonly used?
Common material options include copper tubes, aluminum fins, stainless steel tubes, galvanized steel casing, Aluzinc steel casing, stainless steel casing, epoxy-coated fins and special anti-corrosion coatings. Material selection should consider ambient environment, coastal exposure, industrial pollution, fluid compatibility and required service life.
What should I send to get a quotation?
To receive an accurate quotation, send the heat rejection capacity, fluid type, glycol concentration, flow rate, inlet and outlet fluid temperatures, design dry bulb temperature, project location, altitude, power supply, installation space, noise requirement, material preference and any control or customization requirements.
