Crossflow Evaporative Condenser

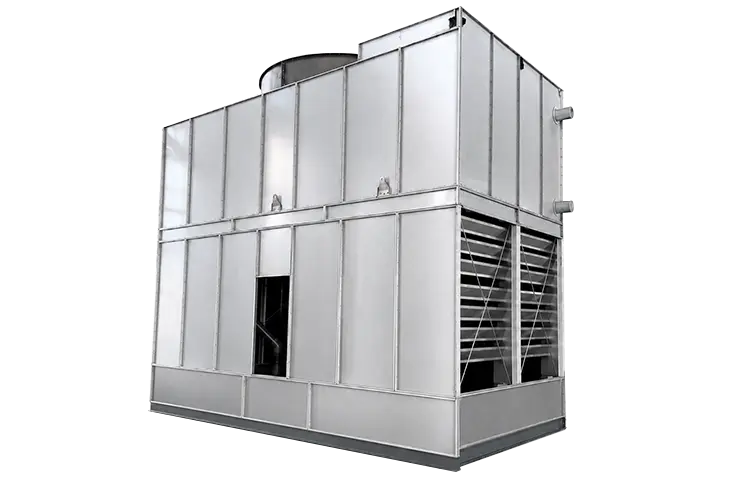

A crossflow evaporative condenser is a refrigeration heat rejection device where refrigerant vapor flows inside a condenser coil, while spray water flows over the coil surface and air moves horizontally across the wetted coil section. A portion of the spray water evaporates and removes heat from the refrigerant, allowing the refrigerant vapor to condense into liquid. Crossflow evaporative condensers are commonly used in industrial refrigeration, cold storage, food processing, ammonia refrigeration and HVAC refrigeration systems.

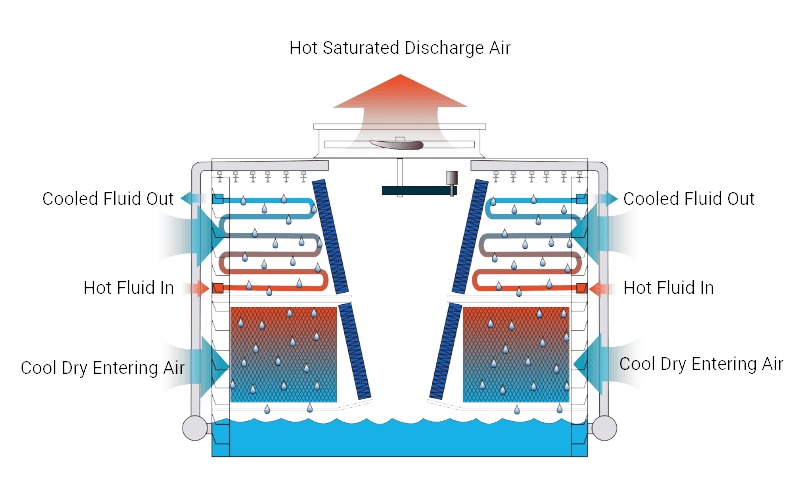

Hot refrigerant vapor from the compressor enters the condenser coil. Spray water is distributed over the outside of the coil, and air enters from the side of the unit and moves horizontally across the wetted coil section. Heat transfers from the refrigerant to the coil wall, then to spray water and air. A small portion of spray water evaporates and removes heat, so the refrigerant vapor condenses into liquid and returns to the refrigeration system.

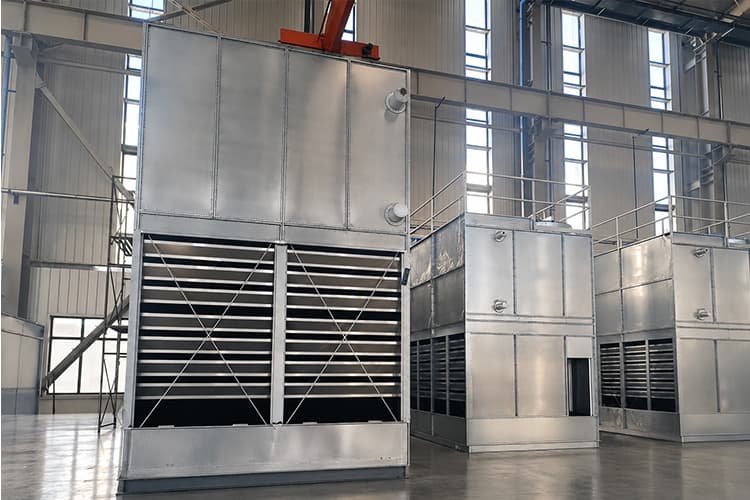

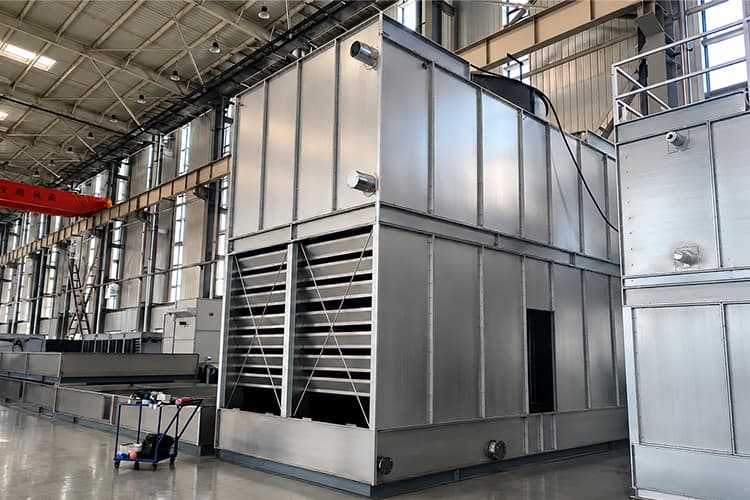

A crossflow evaporative condenser is often selected when the project requires efficient refrigerant condensing, stable air-water contact and practical maintenance access. The crossflow structure can provide convenient side access to the coil, spray water system, basin and internal components, making it useful for industrial refrigeration projects where inspection and serviceability matter.

In a crossflow evaporative condenser, air moves horizontally across the wetted coil section. In a counterflow evaporative condenser, air moves upward against the downward spray water flow. Crossflow designs are often preferred for maintenance access and service-friendly layout, while counterflow designs are often selected for compact footprint and efficient vertical heat transfer.

A crossflow evaporative condenser directly condenses refrigerant vapor inside a coil, while a cooling tower cools circulating water. In a cooling tower, the cooled water returns to a chiller, heat exchanger or process system. In an evaporative condenser, the refrigerant changes phase from vapor to liquid inside the coil, which makes it a condenser for refrigeration systems rather than a water cooling tower.

An air-cooled condenser rejects heat through air passing over dry finned coils. A crossflow evaporative condenser uses spray water evaporation and airflow over a wetted coil surface. Under suitable wet bulb conditions, an evaporative condenser can often operate at a lower condensing temperature than an air-cooled condenser, which may improve refrigeration system efficiency. However, evaporative condensers require water treatment and spray water maintenance.

Important selection data includes refrigerant type, heat rejection capacity, refrigeration capacity if available, condensing temperature, design wet bulb temperature, compressor operating conditions, project location, power supply, installation space, water quality, noise requirement, coil material preference and corrosion environment.

Wet bulb temperature is the key ambient condition because evaporative condensers reject heat mainly through spray water evaporation. The achievable condensing temperature depends strongly on the local design wet bulb temperature. A project in a high wet bulb climate will require different condenser sizing than a project in a cooler or drier climate.

Common materials include galvanized steel, Aluzinc steel, stainless steel, FRP casing components, steel or stainless steel condenser coils, PVC drift eliminators, spray nozzles, axial fans and structural supports. The right material selection depends on refrigerant type, pressure requirement, water quality, corrosion environment and project budget.

To receive an accurate quotation, send the refrigerant type, total heat rejection capacity, refrigeration capacity if available, condensing temperature, design wet bulb temperature, project location, power supply, installation space, noise requirement, coil material preference, water quality and any corrosion or customization requirements.
