Counterflow Spray Nozzles
Designed for pressurized spray systems where water must be distributed downward over counterflow fill or coil sections.
Counterflow towers
Spray pipe system
Uniform coverage

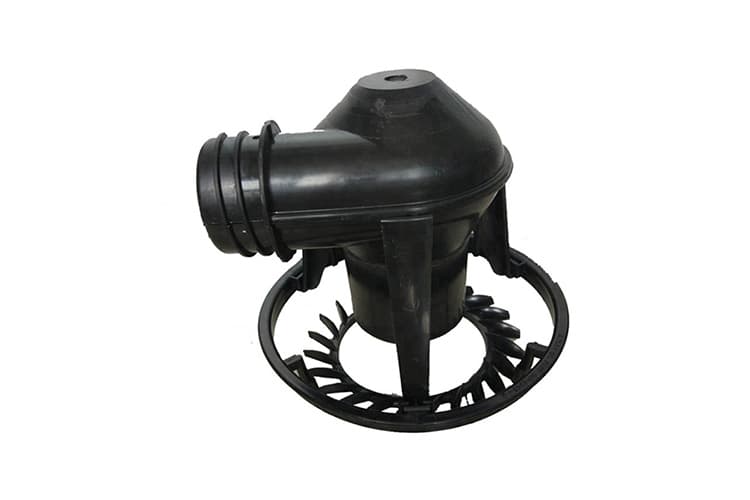

Cooling Tower Nozzles
Cooling Tower Nozzles
Thermocore supplies cooling tower nozzles, spray nozzles and replacement water distribution nozzles for crossflow cooling towers, counterflow cooling towers, closed circuit cooling towers and evaporative condensers. Our nozzle solutions are designed to improve spray coverage, reduce dry fill zones and support stable cooling tower performance.
From counterflow spray nozzles to crossflow basin nozzles, large-orifice anti-clogging nozzles and custom replacement nozzles, we help engineers and maintenance teams select the right nozzle based on tower type, flow rate, operating pressure, water quality, spray pattern and existing connection dimensions.
Product Overview
Cooling Tower Nozzle Overview
A cooling tower nozzle is a key water distribution component that controls how water is sprayed or released over the fill media, coil section or packing surface. The nozzle affects water coverage, droplet size, spray pattern, flow rate and hydraulic balance inside the cooling tower.
A cooling tower can have high-quality fill and strong airflow, but if the nozzles distribute water unevenly, the tower may still lose cooling performance. Dry fill areas, over-wetted areas, spray gaps and blocked nozzles can all increase leaving water temperature and reduce heat rejection efficiency.
Product TypeCooling tower spray / distribution nozzle
Common UsesCrossflow, counterflow, closed circuit and evaporative condenser
Main FunctionUniform water distribution over fill or coil
Selection FocusFlow rate, pressure, spray pattern and water quality
Replacement FocusConnection size, quantity, spacing and original layout
Products We Supply
Cooling Tower Nozzles We Supply
This section works as the product navigation core of the page. Each nozzle type can later link to a specification sheet, nozzle drawing, quotation form or replacement guide.
Crossflow Basin Nozzles
Used in crossflow cooling tower hot water basins to release water evenly onto fill media by gravity head.
Crossflow towers
Gravity basin
Fill distribution
Large-Orifice Nozzles
Designed to reduce clogging risk in industrial cooling towers with suspended solids, scale particles or basin debris.
Anti-clogging
Dirty water
Industrial towers
Full-Cone Spray Nozzles
Provides solid cone spray coverage for fill, coil and heat exchange sections requiring controlled distribution.
Full cone spray
Coverage control
Pressurized system
Spiral / Non-Clog Nozzles
Suitable for applications that require wider passages, reduced blockage risk and stable spray under industrial water conditions.
Non-clog design
Wide passage
Industrial water
Replacement Nozzles
Customized replacement nozzles according to existing cooling tower model, connection size and water distribution layout.
Custom size
Tower retrofit
Replacement project
Basics
What Is a Cooling Tower Nozzle and How Does It Work?
A cooling tower nozzle is the final water distribution device before hot water reaches the fill media, coil section or heat exchange surface. It may be a pressurized spray nozzle, gravity basin outlet, large-orifice nozzle or customized replacement nozzle.
The nozzle does not cool water by itself. It places the right amount of water in the right location with the right distribution pattern so the fill or coil can create effective heat transfer.
What a Nozzle Controls
- Water flow rate per nozzle
- Spray angle or distribution area
- Droplet size and spray pattern
- Water loading over fill or coil
- Hydraulic balance across the tower
1
Hot water enters the distribution systemWater flows through spray pipes or a hot water basin depending on tower type.
2
Nozzles control flow and patternThe nozzle opening, pressure and geometry determine spray coverage and water loading.
3
Water reaches fill or coil evenlyUniform distribution prevents dry zones and over-wetted areas.
4
Air-water contact removes heatFill or coil sections work properly when water coverage is stable.
5
Cooled water returns to the systemBetter distribution supports stable cooling tower outlet water temperature.
Compatible Equipment
Compatible Equipment for Cooling Tower Nozzles
Cooling tower nozzles and basin outlets should match the equipment water distribution method, available pressure, fill or coil area and operating water quality.
Nozzle Types
Main Types of Cooling Tower Nozzles
Different cooling towers require different nozzle designs. Selecting the wrong nozzle can reduce cooling performance even if the connection size looks correct.
Counterflow Spray Nozzles
Used in pressurized spray systems to distribute water evenly over counterflow fill or coil surfaces. Selection should consider spray angle, nozzle spacing, operating pressure and fill height.
- Pressurized water distribution
- Downward spray pattern
- Common in counterflow towers
- Pressure and spacing are critical
Crossflow Basin Nozzles
Installed in hot water basins to distribute water by gravity over crossflow fill. Selection should consider basin head, outlet opening, water loading and fill area.
- Gravity basin distribution
- Common in crossflow towers
- Low pressure operation
- Requires uniform basin level
Large-Orifice / Anti-Clog Nozzles
Designed with wider passages to reduce clogging caused by sediment, scale particles or biological debris. Useful for industrial towers with difficult water conditions.
- Wider water passage
- Reduced clogging risk
- Industrial dirty water use
- May require larger spacing review
Comparison
Pressurized vs Gravity vs Anti-Clog Nozzles
Select nozzles by hydraulic design, available pressure, water quality and required coverage over the heat exchange area.
| Item | Pressurized Spray Nozzle | Gravity Basin Outlet | Large-Orifice Anti-Clog Nozzle |
|---|---|---|---|
| Typical Use | Counterflow towers, closed circuit towers and evaporative condensers | Crossflow open cooling tower hot water basins | Industrial systems with debris or suspended solids |
| Hydraulic Basis | Pump pressure, flow rate and spray angle | Basin water head, outlet size and spacing | Passage size, flow and allowable solids |
| Main Advantage | Controlled spray coverage | Simple gravity distribution | Better clogging resistance |
| Watch For | Wrong pressure, drift or wall wetting | Uneven basin level and dry fill zones | Reduced spray uniformity if only clogging is considered |
Technical Selection
Technical Selection Guide for Cooling Tower Nozzles
Nozzle selection should start with tower type, hydraulic conditions and water quality. A replacement nozzle must match both connection size and water coverage.
| Parameter | Why It Matters |
|---|---|
| Cooling Tower Type | Determines whether crossflow basin outlet or counterflow spray nozzle is required. |
| Flow and Pressure | Controls nozzle quantity, spray pattern and distribution uniformity. |
| Spray Angle and Spacing | Matches coverage area to the fill or coil section below. |
| Water Quality and Solids | Dirty water may require large-orifice or anti-clog nozzle design. |
| Connection Size | Matches thread, pipe, basin opening or adapter dimensions. |
| Material Requirement | Guides ABS, PVC, PP, nylon or stainless steel selection by temperature and chemistry. |
Replacement & Retrofit
Cooling Tower Nozzle Replacement Guide
Nozzle replacement is a practical way to restore water distribution when existing nozzles are blocked, cracked, missing or unsuitable. However, replacement should check the reason for failure rather than simply copying the same nozzle blindly.
1
Identify tower type and nozzle positionConfirm crossflow basin distribution, counterflow spray header or coil spray system.
2
Measure connection and dimensionsRecord thread size, pipe connection, nozzle height, spacing and quantity.
3
Check flow and pressure conditionsConfirm whether the existing pump or gravity head matches the new nozzle requirement.
4
Review clogging and failure reasonDetermine whether scaling, debris, material aging or wrong orifice size caused the problem.
5
Verify spray coverage after installationCheck that fill or coil surfaces receive uniform water distribution.
When Replacement Helps
When nozzles are blocked, broken, missing, chemically damaged, deformed or causing poor distribution.
When Cleaning May Be Enough
When nozzles are structurally sound and only lightly blocked by removable debris or sediment.
When Redesign Is Needed
When the original nozzle type does not match water quality, flow, pressure or heat exchange layout.
Before Replacement
Nozzle Checks Before Replacement
Before replacing cooling tower nozzles, check whether the problem comes from clogged passages, wrong hydraulics or damaged parts.
Clogging and Debris
Inspect nozzle openings, basin sediment and spray headers for scale, dirt or old fill fragments.
Spray Coverage
Check whether poor distribution is caused by blocked, missing or incorrectly installed nozzles.
Hydraulic Cause
Confirm flow, pressure and orifice size before copying the old nozzle design.
Not Sure Which Cooling Tower Nozzle Is Right for Your Tower?
Send your tower type, existing nozzle photos, nozzle quantity, connection size, flow rate, pressure and water quality. Our engineering team will recommend counterflow spray nozzles, crossflow basin nozzles, large-orifice nozzles or customized replacement nozzles.
Tower type
Nozzle photos
Connection size
Flow / pressure
Water quality
FAQ
Cooling Tower Nozzles FAQ
These FAQs are written for HVAC engineers, cooling tower maintenance teams, industrial buyers and contractors who need to understand cooling tower nozzle selection, replacement, clogging control, materials and customization.
What is a cooling tower nozzle?
A cooling tower nozzle is a water distribution component that controls how hot water is delivered over the fill media, coil section or heat exchange area inside a cooling tower. Its purpose is to create the correct spray pattern, droplet size, coverage area and water loading so that the fill, coil or packing surface receives uniform water distribution. Good nozzle performance is essential for cooling tower heat transfer, because uneven spray can cause dry fill zones, over-wetted areas, scaling, reduced cooling capacity and higher leaving water temperature.
How does a cooling tower nozzle work?
A cooling tower nozzle works by converting water pressure or gravity head into a controlled spray or water distribution pattern. In counterflow cooling towers, spray nozzles usually distribute water downward over the fill while air moves upward. In crossflow cooling towers, gravity distribution nozzles or basin nozzles release water from the hot water basin over the fill. The nozzle opening, spray angle, flow rate, operating pressure and anti-clogging design determine how evenly water covers the heat exchange section.
Why are cooling tower nozzles important?
Cooling tower nozzles are important because fill media and heat exchange coils can only perform well when water is distributed evenly. Poor nozzle performance can create dry channels, local scaling, biological growth, fill blockage, uneven air-water contact and reduced thermal capacity. In many cooling tower maintenance cases, replacing blocked or damaged nozzles can improve performance without replacing the complete tower.
What is the difference between counterflow nozzles and crossflow nozzles?
Counterflow cooling tower nozzles are usually part of a pressurized spray system and distribute water downward over the fill section while air flows upward. Crossflow cooling tower nozzles are often installed in gravity hot water basins and distribute water downward onto fill while air flows horizontally across the fill. Counterflow nozzles focus on spray angle, droplet distribution and pressure; crossflow nozzles focus on basin flow distribution, orifice size and even water loading.
What types of cooling tower nozzles are available?
Common types include counterflow spray nozzles, crossflow basin nozzles, gravity distribution nozzles, large-orifice nozzles, clog-resistant nozzles, spiral nozzles, square spray nozzles, full-cone nozzles and replacement nozzles for existing cooling tower models. The best type depends on tower structure, water quality, operating pressure, required flow rate, fill layout and maintenance condition.
What is a full-cone cooling tower nozzle?
A full-cone cooling tower nozzle produces a solid cone-shaped spray pattern that distributes water over a circular or square coverage area depending on design. It is commonly used where uniform water coverage is needed over fill or coil sections. Full-cone nozzles are often used in counterflow cooling towers, closed circuit cooling towers and evaporative condensers when the spray pattern must cover a specific heat exchange area.
How do I select the right cooling tower nozzle?
Nozzle selection should consider cooling tower type, water flow rate, operating pressure, spray pattern, coverage area, nozzle spacing, fill layout, basin design, water quality, suspended solids, scaling tendency, water temperature, material compatibility and replacement dimensions. A nozzle should not be selected only by thread size or appearance; it must match the hydraulic and thermal design of the tower.
Why do cooling tower nozzles clog?
Cooling tower nozzles clog because of scale particles, suspended solids, rust, biological slime, algae, mud, pipe debris, basin sediment or broken fill pieces. Small-orifice nozzles are more sensitive to clogging. Proper filtration, water treatment, basin cleaning and nozzle selection help reduce clogging risk.
What is the best nozzle material for cooling towers?
There is no single best material for every tower. ABS or PVC may be suitable for many standard HVAC cooling towers. PP may be selected for better chemical or temperature resistance. Nylon or reinforced plastic can improve mechanical strength. Stainless steel is used when higher durability, temperature resistance or corrosion resistance is required. Material should be selected based on water chemistry, operating temperature and installation environment.
What should I send to get a cooling tower nozzle recommendation?
Send the cooling tower type, application, existing nozzle photos, nozzle quantity, connection size, water flow rate, operating pressure or gravity head, water quality, fill layout, tower model and whether the project is new installation or replacement. With this data, an engineering team can recommend counterflow spray nozzles, crossflow basin nozzles, clog-resistant nozzles or custom replacement nozzles.
Start Your Project
Need Cooling Tower Nozzles for New Towers or Replacement Projects?
Send us your cooling tower type, existing nozzle photos, connection size, nozzle quantity, flow rate, operating pressure, water quality and replacement requirements. Our engineering team will help you select a suitable cooling tower nozzle solution.
