Cooling Tower Fans

A cooling tower fan is the mechanical component that moves the design airflow through the fill media, heat exchange coil or wet deck of a cooling tower, closed circuit cooling tower or evaporative condenser. The fan must deliver the required air volume against the static pressure created by fills, drift eliminators, louvers, coils and the tower casing. Because evaporative heat rejection depends directly on air-water contact, fan performance largely determines the thermal capacity, energy consumption and noise level of the complete unit.

A cooling tower fan converts motor shaft power into airflow. The motor drives the fan directly or through a belt or gear reducer, the rotating blades accelerate air, and the resulting pressure difference pulls or pushes air through the heat exchange section. In induced draft towers the fan sits at the air outlet and pulls air through the unit. In forced draft towers the fan sits at the air inlet and pushes air through the casing. Blade pitch angle, rotation speed, fan diameter and inlet conditions together determine the operating point on the fan curve.

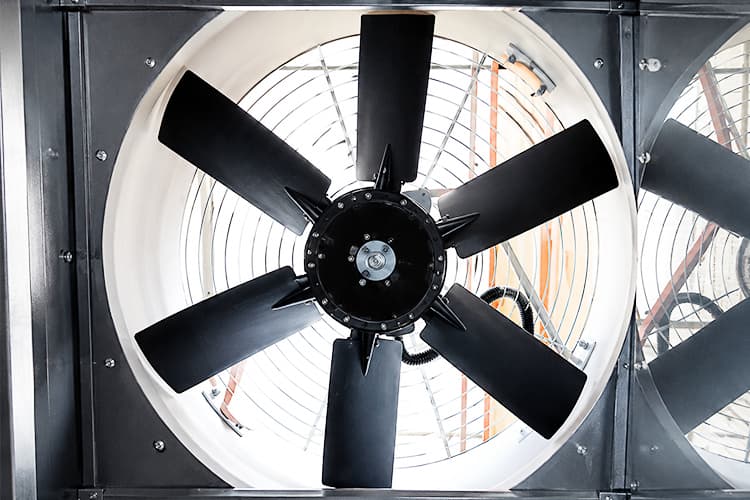

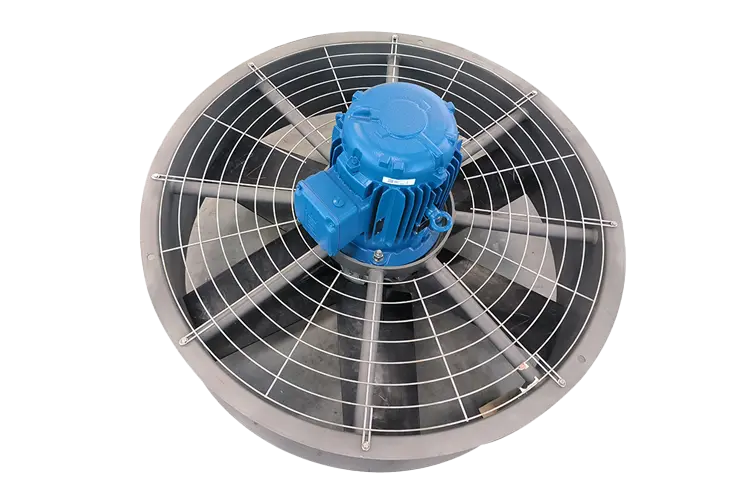

Axial fans move air parallel to the fan shaft and are designed for high air volume at relatively low static pressure, which matches most open cooling towers, closed circuit cooling towers and evaporative condensers. Centrifugal fans accelerate air radially and can work against higher static pressure with lower outlet noise, which suits forced draft units, indoor installations and projects with discharge ducting. Axial fans are generally more energy efficient for the same airflow, while centrifugal fans are selected when pressure capability or strict noise limits control the design.

An induced draft fan is installed at the top air outlet and pulls air through the fill or coil section, which gives uniform air distribution, lower recirculation risk and is the most common arrangement for axial fans. A forced draft fan is installed at the air inlet side and pushes air through the unit; it keeps the drive assembly in the dry entering air stream and is typical for centrifugal fan units, but it requires attention to air distribution and possible warm air recirculation. The fan type cannot be swapped freely because the casing, plenum and drive design follow the draft arrangement.

Common blade materials are FRP (fiberglass reinforced plastic), aluminum alloy and, for some centrifugal wheels, hot-dip galvanized or stainless steel. FRP blades are light, corrosion resistant in the saturated discharge air stream and common for large-diameter adjustable-pitch axial fans. Aluminum alloy blades offer good stiffness-to-weight ratio and are widely used in small and medium diameters. Hubs are usually galvanized steel, cast aluminum or stainless steel, and fasteners should be stainless steel because the fan operates in warm, moist, oxygen-rich air.

Fan selection should start from the required airflow and the total static pressure of the tower, then determine fan diameter, blade number, blade pitch angle and rotation speed so the operating point sits in the stable, efficient region of the fan curve. Tip speed must be checked against noise requirements, motor power must cover the absorbed power with margin at the actual air density, and the drive type (direct, belt or gear) must match the speed reduction and maintenance plan. For replacement projects the new fan must also match the existing fan ring diameter, hub interface and rotation direction.

Typical causes are blade imbalance from erosion, scaling deposits or water absorption, unequal blade pitch angles after maintenance, worn bearings, shaft misalignment between motor, reducer and fan, loose anchor or hub bolts, and aerodynamic turbulence caused by blocked inlets or damaged fan stacks. Vibration should be diagnosed before parts are replaced, because installing a new fan on a misaligned drive or damaged support will repeat the failure quickly.

Yes, in many cases. Noise can be reduced by selecting low-noise blade profiles, using a larger number of blades at a lower rotation speed, reducing tip speed with a larger diameter or adjusted pitch, and operating the fan with a variable frequency drive at partial load. Each measure must keep the delivered airflow at the design value, otherwise the thermal performance of the tower drops. Severe noise limits may justify combining a low-noise fan with inlet and discharge attenuators.

Most cooling tower fans work very well with VFDs because fan power follows the cube of speed: a small speed reduction saves significant energy and reduces noise during partial load or low wet bulb periods. The motor must be rated for inverter duty, minimum speeds should respect gearbox lubrication and motor cooling limits, and critical speed or resonance bands of the drive line should be locked out in the drive settings. With these checks, VFD control is the standard way to match fan airflow to the actual heat load.

Send the equipment type and model, fan arrangement (induced or forced draft), existing fan diameter and blade count, photos of the fan and drive, motor power and speed, drive type, required airflow or design conditions if available, noise requirements and the reason for replacement such as vibration, broken blades, insufficient cooling or energy saving. With this information an engineering team can recommend a suitable axial or centrifugal fan, blade set, motor and drive combination.
