Easy Distribution Basin Access
Gravity water distribution systems can often be inspected and cleaned from the top or service area.

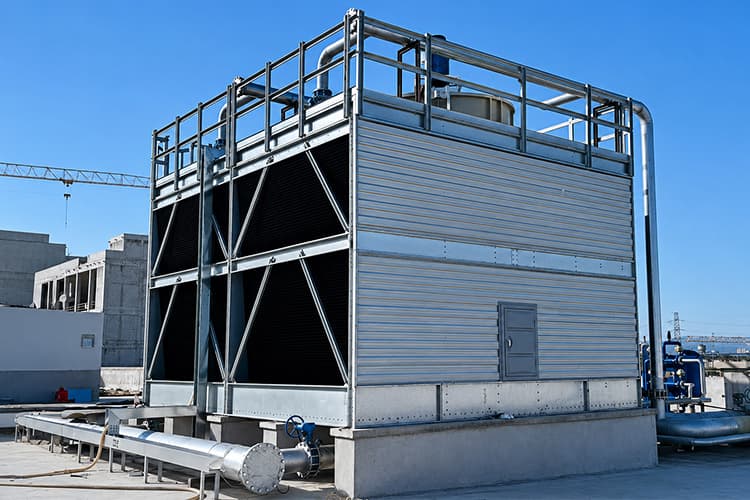

Crossflow Open Cooling Tower
Crossflow Open Cooling Tower
Thermocore crossflow open cooling towers are designed for HVAC condenser water systems, water-cooled chillers, industrial process cooling, refrigeration support and general equipment cooling applications where efficient evaporative water cooling and practical maintenance access are important.
In a crossflow open cooling tower, hot water flows downward through fill media while air moves horizontally across the fill. The direct air-water contact removes heat through evaporation, allowing cooled water to return to the chiller, condenser, heat exchanger or industrial process system.
Product Overview
Crossflow Open Cooling Tower Overview
A crossflow open cooling tower is an open circuit evaporative cooling system. The circulating water is directly exposed to air inside the tower. Hot water flows downward through the fill, while air enters from the side and moves horizontally through the heat exchange section. A small portion of the water evaporates and removes heat from the remaining water.
This product is suitable for projects where the customer needs efficient condenser water or process water cooling, a proven tower structure, practical inspection access and a cost-effective alternative to closed circuit systems.
Cooling TypeDirect evaporative water cooling
Airflow DirectionHorizontal crossflow airflow
Water LoopOpen circulating water loop
Heat Exchange CoreFill + airflow + water distribution
Main BenefitEfficient cooling and easy access
Working Principle
How Does a Crossflow Open Cooling Tower Work?
The system cools water through direct evaporative heat transfer. Hot water is distributed over the fill, air enters horizontally through the side of the tower, and evaporation removes heat from the water. The cooled water collects in the basin and returns to the system.
1
Hot water enters the towerWater from the chiller, condenser or process system enters the distribution area.
2
Water flows downward through fillThe fill increases contact area between water and air.
3
Air moves horizontally across the fillSide airflow passes through the falling water and fill section.
4
Evaporation removes heatA small amount of water evaporates and cools the remaining circulating water.
5
Cooled water returns to the systemThe cold water basin collects cooled water for recirculation.
Crossflow Design
Why Choose a Crossflow Open Cooling Tower?
Crossflow design is selected when the project needs efficient open evaporative cooling with practical maintenance access. The horizontal airflow and gravity water distribution layout can make internal inspection and routine service more convenient for many HVAC and industrial installations.
Stable Horizontal Airflow
Air moves from the side across the fill section, supporting stable evaporative heat transfer.
Practical Maintenance Layout
Fill, basin, louvers and drift eliminators can be arranged for easier inspection in many designs.
Suitable for HVAC Chiller Systems
Widely used for condenser water heat rejection in water-cooled chiller systems.
Cost-Effective Water Cooling
Open evaporative cooling provides efficient heat rejection with a practical equipment structure.
Modular Project Options
Multiple cells or modular arrangements can be used for larger water flow and cooling capacity.
Applications
Applications of Crossflow Open Cooling Towers
Crossflow open cooling towers are used where circulating water can directly contact air and efficient evaporative cooling is required. They are especially common in HVAC condenser water systems and industrial process water cooling.
Chemical Plant
Food & Beverage
HVAC
Industrial Process
Industrial Refrigeration
Injection Molding
Petrochemical & Refinery
Plastic Processing
Power Plant
Steel & Metallurgy
Crossflow Open Cooling Towers Application Image Placeholder
Comparison
Crossflow vs Counterflow Open Cooling Tower
Crossflow and counterflow open cooling towers both cool water through direct evaporative contact with air. The main differences are airflow direction, water distribution method, footprint and maintenance access.
| Item | Crossflow Open Cooling Tower | Counterflow Open Cooling Tower |
|---|---|---|
| Airflow Direction | Horizontal airflow across downward water flow | Upward airflow against downward water flow |
| Water Distribution | Often uses gravity distribution basin | Often uses pressurized spray nozzles |
| Footprint | Usually requires more horizontal space | Usually more compact |
| Maintenance Access | Often easier for distribution basin and fill inspection | Can be tighter due to compact structure |
| Best For | Projects where service access and gravity distribution are priorities | Projects where compact footprint is more important |
| Selection Logic | Choose when maintenance access and serviceability matter | Choose when space-saving layout is the key priority |
System Comparison
Crossflow Open Cooling Tower vs Closed Circuit Cooling Tower
The key difference is whether the circulating fluid directly contacts air. Crossflow open cooling towers expose water to air for direct evaporative cooling, while closed circuit cooling towers keep the process fluid inside a coil.
| Item | Crossflow Open Cooling Tower | Closed Circuit Cooling Tower |
|---|---|---|
| Fluid Exposure | Circulating water directly contacts air | Process fluid stays inside a heat exchange coil |
| Cooling Method | Direct evaporative cooling | Indirect evaporative cooling through coil surface |
| Initial Cost | Usually lower | Usually higher |
| Fluid Cleanliness | Water is exposed to dust, air and outdoor contaminants | Main process fluid is better protected |
| Maintenance Focus | Fill, basin, distribution system, water treatment and fan | Coil, spray water, basin, pump, fan and water treatment |
| Best For | General condenser water and industrial water cooling | Clean fluid loops and sensitive equipment cooling |
Technical Selection
Technical Selection Guide
Selecting a crossflow open cooling tower requires accurate water and climate data. A professional selection should consider water flow rate, inlet and outlet water temperatures, wet bulb temperature, cooling range, approach, water quality, installation space, airflow clearance and noise requirements.
| Parameter | Why It Matters |
|---|---|
| Cooling Capacity | Determines tower size and required heat rejection capability. |
| Water Flow Rate | Affects fill size, distribution basin design and tower model. |
| Inlet Water Temperature | Defines the hot-side operating condition. |
| Outlet Water Temperature | Defines the required cold water target. |
| Wet Bulb Temperature | Key ambient limit for evaporative cooling performance. |
| Cooling Range | Shows how much temperature drop the tower must provide. |
| Approach Temperature | Determines how close the outlet water must be to wet bulb temperature. |
| Water Quality | Affects fill selection, scaling, corrosion and maintenance frequency. |
| Installation Space | Influences tower size, airflow clearance and service access. |
| Noise Requirement | Affects fan selection, fan speed and low-noise configuration. |
Key Components
Key Components of a Crossflow Open Cooling Tower
Performance depends on the fill, water distribution system, airflow path, fan, drift eliminator, basin, louvers and structural design. Each component should support stable water distribution, efficient air-water contact and practical maintenance.
Heat Exchange Fill
Increases contact area between water and air for evaporative cooling.
Distribution Basin
Distributes hot water evenly over the fill by gravity in many crossflow designs.
Axial Fan
Moves air through the fill section and supports evaporation.
Drift Eliminator
Reduces water droplets carried out by discharge air.
Air Inlet Louver
Guide air into the tower and help reduce splash-out and debris entry.
Cold Water Basin
Collects cooled water before it returns to the system.
Fan Motor and Drive System
Supports fan operation and can be configured for project requirements.
Casing and Frame
Protects components and supports outdoor installation.
Material Options
Material Options
Material selection affects corrosion resistance, structural strength, service life and maintenance cost. The best configuration depends on water quality, outdoor exposure, industrial environment and project budget.
FRP Casing
FRP casing is widely used for cooling towers because it is lightweight, corrosion-resistant and suitable for outdoor operation.
FRP casing
FRP fan stack
Outdoor durability
Frame and Structural Materials
Structural materials should match corrosion conditions, wind load, project design and export requirements.
Galvanized steel
Aluzinc steel
Stainless steel options
Water Contact Parts
Water contact parts should be selected for heat transfer, corrosion resistance and long-term maintenance.
PVC fill
PVC drift eliminator
Stainless steel basin
Water Treatment & Maintenance
Water Treatment and Maintenance
Crossflow open cooling towers expose circulating water directly to air, so water treatment and routine maintenance are essential. Proper maintenance helps prevent scaling, corrosion, biological growth, fill blockage and performance loss.
Water Treatment
Controls scaling, corrosion, biological growth and dissolved solids concentration in the open water loop.
- Monitor water quality
- Control blowdown
- Manage biological growth
Distribution and Fill Cleaning
Distribution basins, outlets and fill should be inspected to ensure uniform water flow and stable heat transfer.
- Clean basin outlets
- Inspect fill condition
- Remove debris and sediment
Fan and Airflow Inspection
Fans, motors, louvers and drift eliminators should be checked to maintain proper airflow and water control.
- Check fan operation
- Inspect louvers
- Clean drift eliminators
Advantages
Performance Advantages
Crossflow open cooling towers are selected when customers need efficient evaporative water cooling, practical maintenance access and proven HVAC or industrial cooling performance.
Efficient Evaporative Cooling
Direct air-water contact provides strong heat rejection in suitable wet bulb conditions.
Gravity Water Distribution
Many crossflow towers use a distribution basin that is easy to inspect and clean.
Practical Maintenance Access
Fill, basin, distribution and louver areas can be easier to access in many layouts.
Suitable for Chiller Systems
Widely used for HVAC condenser water heat rejection.
Cost-Effective Structure
Open cooling tower design is often more economical than closed circuit systems.
Modular Capacity Options
Multiple cells or units can be combined for larger projects.
Wide Application Range
Suitable for HVAC, industrial process cooling and general water cooling systems.
Material Flexibility
FRP, galvanized steel, Aluzinc and stainless steel options can be selected.
Custom Engineering
Custom Engineering Options
Thermocore can customize crossflow open cooling towers according to cooling capacity, water flow rate, structure, material, fan system, fill type, noise, voltage, corrosion environment and export shipping requirements.
Thermal Customization
For projects with special cooling capacity, range, approach or wet bulb requirements.
Cooling capacity
Water flow rate
Approach temperature
Wet bulb design
Structure Customization
For projects requiring modular cells, special layout, low-noise fans or maintenance access design.
Crossflow layout
Multi-cell design
Access doors
Low-noise fans
Material & Export Customization
For corrosion resistance, special voltage, OEM cooperation and international shipping requirements.
FRP casing
Stainless steel basin
Special voltage
Export packaging
Not Sure Whether Crossflow Open Cooling Tower Is Right for Your Project?
Send your cooling capacity, water flow rate, inlet and outlet water temperature, wet bulb temperature and project layout. Our engineering team will compare crossflow, counterflow, closed circuit and dry cooling options for your project.
Cooling capacity
Water flow rate
Range / approach
Wet bulb
Water quality
FAQ
Crossflow Open Cooling Tower FAQ
These FAQs are written for HVAC engineers, contractors, industrial buyers and procurement teams who need to understand crossflow open cooling tower selection, operation, water treatment and customization.
What is a crossflow open cooling tower?
A crossflow open cooling tower is an evaporative heat rejection system where hot circulating water flows downward through fill media while air moves horizontally across the falling water. The water directly contacts the air, and a small portion of the water evaporates to remove heat from the remaining circulating water. Crossflow open cooling towers are widely used in HVAC condenser water systems, water-cooled chillers and industrial process cooling applications.
How does a crossflow open cooling tower work?
Hot water enters the upper water distribution basin or distribution system and flows downward over the fill. Air enters from the side of the tower and moves horizontally across the fill section. As air contacts the falling water, part of the water evaporates and removes heat. The cooled water collects in the cold water basin and returns to the chiller, condenser, heat exchanger or process equipment.
Why choose a crossflow open cooling tower?
A crossflow open cooling tower is often selected when the project requires efficient evaporative water cooling, practical maintenance access and stable gravity water distribution. The crossflow structure usually allows easier access to the distribution basin, fill, drift eliminators and internal components than some compact tower designs.
What is the difference between crossflow and counterflow open cooling towers?
In a crossflow open cooling tower, air moves horizontally across the falling water. In a counterflow open cooling tower, air moves upward against the downward water flow. Crossflow towers are often preferred for easier maintenance access and gravity water distribution, while counterflow towers are often selected for compact footprint and efficient vertical air-water contact.
Is a crossflow open cooling tower suitable for water-cooled chillers?
Yes. Crossflow open cooling towers are commonly used with water-cooled chillers in HVAC systems. They reject condenser heat by cooling circulating condenser water through direct evaporative contact with air. Proper selection should consider chiller heat rejection, condenser water flow, hot water temperature, cold water temperature and local wet bulb temperature.
What applications are suitable for crossflow open cooling towers?
Crossflow open cooling towers are suitable for HVAC condenser water systems, water-cooled chillers, industrial process cooling, plastic injection molding, refrigeration support, food and beverage processing, chemical process cooling, power systems and general equipment cooling where open evaporative water cooling is acceptable.
What information is needed for model selection?
Important selection data includes cooling capacity, circulating water flow rate, inlet hot water temperature, required outlet cold water temperature, local design wet bulb temperature, application, project location, water quality, installation space, power supply and noise requirement.
Does a crossflow open cooling tower need water treatment?
Yes. Because the circulating water is directly exposed to air, water treatment is essential. Treatment helps control scaling, corrosion, biological growth, suspended solids and basin sediment. Without proper treatment, fill blockage, poor heat transfer and higher maintenance costs can occur.
What materials are commonly used?
Common materials include FRP casing, galvanized steel or Aluzinc steel structural parts, stainless steel water-contact options, PVC fill, PVC drift eliminators, air inlet louvers, axial fans and cold water basin components. Material selection should consider water quality, corrosion environment, outdoor exposure and project budget.
What should I send to get a quotation?
To receive an accurate quotation, send the cooling capacity or heat load, circulating water flow rate, inlet water temperature, outlet water temperature, design wet bulb temperature, project location, application, power supply, installation space, water quality, material preference and any noise or customization requirements.
