Easier Maintenance Access
The crossflow layout can make it easier to inspect the spray system, coil area, water basin and internal components.

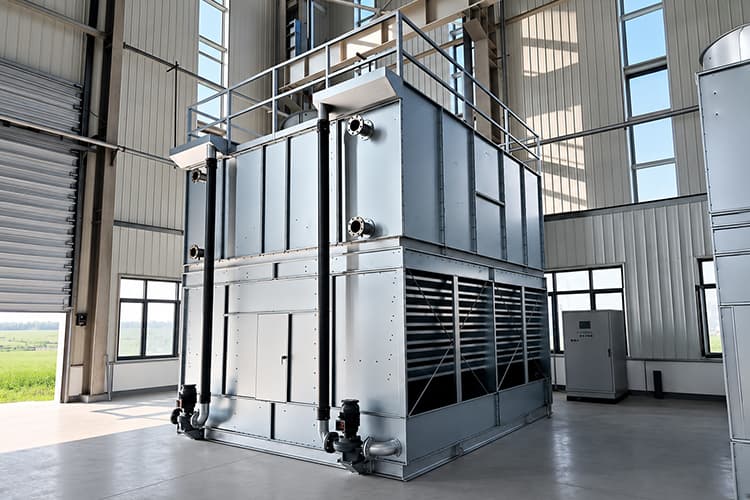

Crossflow Closed Circuit Cooling Tower
Crossflow Closed Circuit Cooling Tower
Thermocore crossflow closed circuit cooling towers are designed for HVAC, industrial process cooling, equipment cooling, refrigeration support and manufacturing applications where clean process fluid, stable heat rejection and easier maintenance access are important.
The crossflow design allows air to move horizontally across the coil and spray water section, while the process fluid remains isolated inside the heat exchange coil. This helps protect chillers, compressors, molds, furnaces, heat exchangers and closed-loop cooling systems from external contamination.
Product Overview
Crossflow Closed Circuit Cooling Tower Overview
A crossflow closed circuit cooling tower is a closed-loop evaporative cooling system. The process fluid flows inside a heat exchange coil, while spray water and horizontal airflow remove heat from the outside of the coil. The main cooling loop is not exposed directly to air, which helps reduce contamination, scaling inside connected equipment and process fluid quality problems.
This product is suitable for projects where the customer needs the efficiency of evaporative cooling but also wants better protection for the process fluid than an open cooling tower can provide.
Cooling TypeIndirect evaporative cooling
Airflow DirectionHorizontal crossflow airflow
Fluid LoopClosed-loop process fluid
Heat Exchange CoreCoil + spray water + airflow
Main BenefitCleaner fluid and easier access
Working Principle
How Does a Crossflow Closed Circuit Cooling Tower Work?
The system removes heat through indirect evaporative cooling. Hot process fluid stays inside the coil. Spray water flows over the outside of the coil, and air moves horizontally through the heat exchange area. A small portion of spray water evaporates and removes heat from the coil surface.
1
Hot process fluid enters the coilThe main fluid remains inside the closed heat exchange coil.
2
Spray water wets the coil surfaceThe spray system distributes water over the outside of the coil.
3
Air moves horizontally across the coilCrossflow airflow passes through the wetted heat exchange section.
4
Evaporation removes heatA portion of spray water evaporates and carries heat away from the coil.
5
Cooled fluid returns to the systemThe process fluid leaves the coil without direct exposure to air or spray water.
Crossflow Design
Why Choose a Crossflow Closed Circuit Cooling Tower?
The crossflow structure is not only an airflow direction. It affects maintenance access, internal layout, water distribution, air resistance and long-term serviceability. For many industrial projects, crossflow design is selected because it provides a practical balance between cooling performance and maintenance convenience.
Stable Air-Water Contact
Horizontal airflow across the wetted coil section supports stable heat rejection and predictable operating performance.
Closed Loop Fluid Protection
The process fluid stays inside the coil and does not directly contact outside air or spray water.
Service-Friendly Layout
For projects with enough installation space, crossflow towers can provide more practical service access than very compact designs.
Suitable for Continuous Operation
Industrial systems that run for long hours benefit from stable heat rejection and easier routine inspection.
Flexible Project Customization
Coil material, casing, fan system, basin and access details can be customized according to site requirements.
Applications
Applications of Crossflow Closed Circuit Cooling Towers
Crossflow closed circuit cooling towers are used where the process fluid should remain cleaner and better protected than in an open cooling tower system. They are suitable for HVAC, industrial process cooling and equipment protection applications.
Chemical Plant
Compressor
Data Center
Food & Beverage
HVAC
Industrial Process
Industrial Refrigeration
Injection Molding
Petrochemical & Refinery
Pharmaceutical
Plastic Processing
Power Plant
Steel & Metallurgy
Crossflow Closed Circuit Cooling Towers Application Image Placeholder
Comparison
Crossflow vs Counterflow Closed Circuit Cooling Tower
Both crossflow and counterflow closed circuit cooling towers protect the process fluid inside a coil. The main difference is airflow direction and how the tower balances footprint, access and heat exchange layout.
| Item | Crossflow Closed Circuit Cooling Tower | Counterflow Closed Circuit Cooling Tower |
|---|---|---|
| Airflow Direction | Horizontal airflow across the coil and spray water area | Vertical upward airflow against downward spray water |
| Footprint | Usually requires more horizontal space | Usually more compact |
| Maintenance Access | Often easier in many layouts | Can be tighter due to compact structure |
| Best For | Projects where serviceability and stable access matter | Projects where compact layout is more important |
| Selection Logic | Choose when maintenance and access are priorities | Choose when footprint is limited |
System Comparison
Crossflow Closed Circuit Cooling Tower vs Open Cooling Tower
The key difference is fluid protection. Open towers expose circulating water directly to air, while crossflow closed circuit towers keep the process fluid inside a coil. This makes closed circuit towers more suitable for systems that need cleaner fluid circulation.
| Item | Crossflow Closed Circuit Cooling Tower | Open Cooling Tower |
|---|---|---|
| Fluid Protection | Process fluid stays inside the heat exchange coil | Circulating water directly contacts air |
| Contamination Risk | Lower in the main process fluid loop | Higher because water is exposed to air |
| Heat Transfer | Indirect evaporative cooling through coil surface | Direct evaporative cooling |
| Initial Cost | Usually higher | Usually lower |
| Maintenance Focus | Coil surface, spray water, basin, fan and pump | Fill, basin, water distribution, water treatment and fan |
| Best For | Clean closed-loop process cooling and equipment protection | General condenser water and water cooling applications |
Technical Selection
Technical Selection Guide
Selecting a crossflow closed circuit cooling tower requires accurate operating data. A professional selection should consider heat load, process fluid type, flow rate, temperatures, wet bulb, coil material, spray water quality, pressure drop and installation space.
| Parameter | Why It Matters |
|---|---|
| Cooling Capacity | Determines tower size and required heat rejection capability. |
| Process Fluid Type | Water, glycol or special fluid affects coil design and pressure drop. |
| Fluid Flow Rate | Affects coil sizing, heat transfer and pump selection. |
| Inlet Fluid Temperature | Defines the hot-side operating condition. |
| Outlet Fluid Temperature | Defines the target cooling result. |
| Wet Bulb Temperature | Key ambient limit for evaporative cooling performance. |
| Coil Material | Affects corrosion resistance, service life and fluid compatibility. |
| Spray Water Quality | Affects scaling, corrosion, nozzle performance and maintenance. |
| Installation Space | Determines whether crossflow layout is suitable for the site. |
| Noise Requirement | Affects fan selection, fan speed and low-noise configuration. |
Key Components
Key Components of a Crossflow Closed Circuit Cooling Tower
Performance depends on the coil, fluid connections, spray system, fan, basin, air inlet, drift control, casing and frame. Each component should be selected to support stable heat rejection and long-term reliability.
Heat Exchange Coil
The core component where process fluid flows and transfers heat through the coil wall.
Fluid Headers and Connections
Distributes process fluid through the coil circuits and connect the tower to the closed loop system.
Spray Water System
Distributes water over the coil surface for evaporative heat transfer.
Spray Pump
Circulates spray water from the basin to the distribution system.
Axial Fan
Moves air horizontally across the heat exchange section.
Air Inlet Louver
Guides air into the tower and helps reduce splash-out and debris entry.
Drift Eliminator
Reduces water droplets carried out by discharge air.
Spray Water Basin
Collects spray water and supports recirculation.
Casing and Frame
Protects components and supports the overall tower structure.
Material Options
Material Options
Material selection affects corrosion resistance, thermal performance, service life and maintenance cost. The best configuration depends on process fluid, water quality, installation environment and project budget.
Coil Materials
Coil material can be selected according to process fluid, corrosion risk, pressure drop and service life requirements.
Galvanized steel coil
Stainless steel coil
Project-specific coil design
Casing and Frame Materials
Casing and structural materials should match outdoor exposure, corrosion environment and export project requirements.
FRP casing
Galvanized steel
Aluzinc steel
Water Contact Parts
Water contact parts should resist scaling, corrosion and long-term spray water exposure.
Stainless steel basin
PVC drift eliminator
Corrosion-resistant nozzles
Advantages
Performance Advantages
Crossflow closed circuit cooling towers are selected when customers need both evaporative heat rejection and better process fluid protection.
Cleaner Closed-Loop Fluid
The process fluid stays inside the coil and is not directly exposed to outside air.
Easier Maintenance Access
The crossflow layout can make inspection and service more practical.
Reduced Internal Fouling
Cleaner process fluid helps reduce fouling risk inside connected equipment.
Stable Heat Rejection
Spray water and airflow support reliable evaporative cooling performance.
Industrial Continuous Cooling
Suitable for systems requiring long operating hours and stable performance.
Flexible Material Selection
Coil, casing, basin and frame materials can be matched to project conditions.
Water / Glycol Compatibility
Can be used with water or glycol solutions according to system design.
Equipment Protection
Helps protect chillers, molds, compressors, furnaces and heat exchangers.
Custom Engineering
Custom Engineering Options
Thermocore can customize crossflow closed circuit cooling towers according to cooling capacity, structure, material, coil design, airflow, noise, voltage, corrosion environment and export shipping requirements.
Thermal Customization
For projects with special heat load, approach, wet bulb or fluid temperature requirements.
Cooling capacity
Flow rate
Approach temperature
Wet bulb design
Structure Customization
For projects requiring modular cells, maintenance doors, special layout or low-noise design.
Crossflow layout
Modular cells
Access doors
Low-noise fans
Material & Export Customization
For corrosion resistance, special voltage, OEM cooperation and international shipping requirements.
Stainless steel coil
FRP casing
Special voltage
Export packaging
Not Sure Whether Crossflow Is the Right Structure?
Send your cooling capacity, fluid type, flow rate, inlet and outlet temperature, wet bulb temperature and project layout. Our engineering team will compare crossflow, counterflow and other cooling options for your project.
Cooling capacity
Fluid type
Flow rate
Wet bulb
Project layout
FAQ
Crossflow Closed Circuit Cooling Tower FAQ
These FAQs are written for HVAC engineers, contractors, industrial buyers and procurement teams who need to understand crossflow closed circuit cooling tower selection, operation and customization.
What is a crossflow closed circuit cooling tower?
A crossflow closed circuit cooling tower is a closed-loop evaporative cooling system where process fluid flows inside a heat exchange coil while spray water and horizontal airflow remove heat from the outside of the coil. The process fluid does not directly contact air or spray water, which helps reduce contamination risk and protect connected equipment.
How does a crossflow closed circuit cooling tower work?
Hot process fluid enters the coil, spray water flows over the coil surface, and air moves horizontally across the coil section. A small portion of the spray water evaporates and removes heat from the coil. The cooled process fluid then leaves the coil and returns to the chiller, heat exchanger, furnace, compressor or production equipment.
Why choose a crossflow design?
A crossflow design is often selected when maintenance access, stable air-water contact and practical inspection are important. Because air moves horizontally through the heat exchange section, many crossflow tower layouts provide easier access to the spray system, basin, coil area and internal components than more compact designs.
What is the difference between crossflow and counterflow closed circuit cooling towers?
In a crossflow closed circuit cooling tower, air moves horizontally across the coil and spray water area. In a counterflow closed circuit cooling tower, air moves upward against downward spray water. Crossflow designs are often preferred for serviceability and access, while counterflow designs are often selected for compact footprint and vertical heat exchange efficiency.
Is a crossflow closed circuit cooling tower better than an open cooling tower?
It depends on the application. A crossflow closed circuit cooling tower protects the process fluid inside a coil, reducing contamination risk in the main loop. An open cooling tower exposes water directly to air and is usually simpler and lower in initial cost. If fluid cleanliness and equipment protection are important, the closed circuit design may be the better choice.
What applications are suitable for crossflow closed circuit cooling towers?
They are suitable for HVAC systems, industrial process cooling, plastic injection molding, furnace and induction equipment cooling, compressor cooling, chemical process cooling, power systems, data center auxiliary cooling and other closed-loop heat rejection applications.
What information is needed for model selection?
Key selection data include cooling capacity, process fluid type, fluid flow rate, inlet fluid temperature, required outlet fluid temperature, local wet bulb temperature, glycol concentration if applicable, water quality, project location, installation space and noise requirement.
Does the spray water need treatment?
Yes. The process fluid is protected inside the coil, but the spray water loop is still exposed to air. Water treatment helps control scale, corrosion, biological growth and nozzle blockage. Poor spray water quality can reduce heat transfer and increase maintenance requirements.
When should I not choose a crossflow closed circuit cooling tower?
If the project has very limited footprint, a counterflow design may be more compact. If the customer only needs low initial cost and can accept open water exposure, an open cooling tower may be more economical. If water is extremely limited, a dry cooler or adiabatic cooler may be considered.
What should I send to get a quotation?
To receive an accurate quotation, send the cooling capacity, process fluid type, fluid flow rate, inlet and outlet fluid temperatures, local wet bulb temperature, project location, power supply, installation space, material preference and any noise or corrosion requirements.
Start Your Project
Need a Crossflow Closed Circuit Cooling Tower for Your Project?
Send us your cooling capacity, process fluid type, flow rate, inlet and outlet temperature, wet bulb temperature and project location. Our engineering team will help you select a suitable crossflow closed circuit cooling tower configuration.
