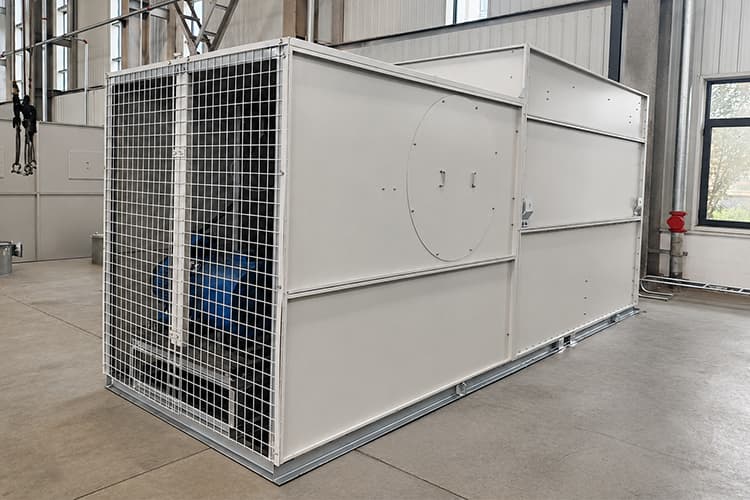

Forced Draft Evaporative Condenser
Forced Draft Evaporative Condenser
Thermocore forced draft evaporative condensers are designed for industrial refrigeration, ammonia refrigeration, cold storage, food processing, ice plants, chemical process cooling and refrigeration systems where reliable refrigerant condensing and flexible airflow arrangement are important.
In a forced draft evaporative condenser, fans push air into the condenser from the inlet side while refrigerant vapor flows inside the condenser coil. Spray water wets the coil surface, and forced airflow supports evaporation and heat rejection, allowing refrigerant vapor to condense into liquid under suitable wet bulb conditions.
Product Overview
Forced Draft Evaporative Condenser Overview
A forced draft evaporative condenser is an evaporative heat rejection device used to condense refrigerant vapor inside a coil. Refrigerant vapor flows through the condenser coil, spray water flows over the outside of the coil, and fans push air into the heat exchange section from the inlet side.
This product is suitable for refrigeration systems where the customer needs efficient evaporative condensing and a specific fan or airflow arrangement. It can be considered for projects requiring lower fan position, fan-side service access, custom air inlet direction or special installation layouts.
Equipment TypeEvaporative refrigerant condenser
Airflow DesignForced draft fan pushes air into condenser
Primary FluidRefrigerant vapor inside coil
Heat Exchange CoreCoil + spray water + forced airflow
Main BenefitFlexible airflow and fan-side access
Working Principle
How Does a Forced Draft Evaporative Condenser Work?
The system condenses refrigerant vapor through coil heat transfer and evaporative cooling. Refrigerant vapor stays inside the coil. Spray water wets the coil surface, and forced draft fans push air into the wetted heat exchange section. A small portion of spray water evaporates and removes heat from the refrigerant.
1
Refrigerant vapor enters the coilHot vapor from the compressor flows into the condenser coil.
2
Spray water wets the condenser coilThe spray system distributes water over the outside surface of the coil.
3
Forced draft fans push air into the condenserAir is driven from the inlet side through the wetted heat exchange area.
4
Evaporation removes heatHeat transfers from refrigerant to coil, spray water and forced airflow.
5
Liquid refrigerant leaves the condenserThe condensed liquid returns to the refrigeration system.
Forced Draft Design
Why Choose a Forced Draft Evaporative Condenser?
Forced draft design is selected when a refrigeration project needs evaporative condensing with a fan arrangement that pushes air into the condenser. This structure can be useful for special installation layouts, fan-side service access and customized airflow paths.
Flexible Airflow Arrangement
The fan pushes air into the condenser, allowing airflow paths to be reviewed for project-specific layouts.
Efficient Refrigerant Condensing
Spray water evaporation helps remove heat from the condenser coil and condense refrigerant vapor.
Suitable for Special Sites
Useful where fan position, air inlet direction, service space or equipment layout requires a customized approach.
Industrial Refrigeration Support
Applicable to cold storage, ammonia refrigeration, food processing, ice plants and process refrigeration.
Custom Refrigeration Design
Coil pressure rating, material, fan, spray system and refrigerant connections can be configured for the project.
Applications
Applications of Forced Draft Evaporative Condensers
Forced draft evaporative condensers are used where refrigerant vapor must be condensed efficiently and the project requires a specific fan or airflow arrangement. They are suitable for industrial refrigeration, cold storage and process cooling systems.
Chemical Plant
Food & Beverage
HVAC
Industrial Process
Industrial Refrigeration
Petrochemical & Refinery
Pharmaceutical
Forced Draft Evaporative Condensers Application Image Placeholder
Comparison
Forced Draft vs Induced Draft Evaporative Condenser
Forced draft and induced draft evaporative condensers both condense refrigerant inside a coil using spray water and airflow. The main difference is whether the fan pushes air into the condenser or pulls air through the condenser.
| Item | Forced Draft Evaporative Condenser | Induced Draft Evaporative Condenser |
|---|---|---|
| Fan Function | Fan pushes air into the condenser from the inlet side | Fan pulls air through the condenser and discharges it from the outlet side |
| Airflow Characteristic | Positive pressure airflow through the heat exchange section | Negative pressure airflow through the heat exchange section |
| Fan Location | Often located near the air inlet or lower side section | Often located near the discharge section or top outlet |
| Maintenance Access | Fan-side access can be convenient depending on layout | Access depends on top discharge or outlet fan structure |
| Recirculation Consideration | Site layout should be reviewed to prevent warm moist air recirculation | Upward discharge can reduce recirculation risk when properly arranged |
| Best For | Special layouts, lower fan position, fan-side access or custom airflow paths | Standard outdoor installations with effective air discharge layout |
| Selection Logic | Choose when fan position and airflow arrangement are key project constraints | Choose when standard induced airflow and top discharge are preferred |
System Comparison
Forced Draft Evaporative Condenser vs Cooling Tower
These two equipment types both reject heat, but they serve different system functions. A forced draft evaporative condenser condenses refrigerant, while a cooling tower cools water.
| Item | Forced Draft Evaporative Condenser | Cooling Tower |
|---|---|---|
| Main Function | Condenses refrigerant vapor inside a coil | Cools circulating water |
| Heat Transfer Method | Coil heat transfer plus spray water evaporation and forced airflow | Direct water-air evaporative cooling |
| Primary Fluid | Refrigerant inside condenser coil | Water exposed to air |
| Water Use | Requires spray water and make-up water | Requires circulating water and make-up water |
| Typical Application | Industrial refrigeration with special fan or airflow layout requirements | HVAC condenser water and process water cooling |
Technical Selection
Technical Selection Guide
Selecting a forced draft evaporative condenser requires refrigeration system data, ambient design data and site layout information. A professional selection should consider total heat rejection, refrigerant type, condensing temperature, wet bulb temperature, coil pressure rating, spray water quality, fan layout, installation space and noise requirements.
| Parameter | Why It Matters |
|---|---|
| Heat Rejection Capacity | Determines condenser model and required condensing capability. |
| Refrigerant Type | Affects coil pressure rating, material and connection requirements. |
| Condensing Temperature | Influences compressor efficiency and condenser selection. |
| Design Wet Bulb Temperature | Key ambient limit for evaporative condenser performance. |
| Compressor Operating Conditions | Helps confirm total heat rejection and system load profile. |
| Fan / Airflow Layout | Determines whether forced draft arrangement is suitable for the project. |
| Coil Material / Pressure Rating | Affects safety, corrosion resistance and refrigerant compatibility. |
| Spray Water Quality | Affects scale formation, corrosion, nozzle condition and maintenance. |
| Installation Space | Influences air inlet clearance, fan access and service planning. |
| Noise Requirement | Affects fan selection, fan speed and low-noise configuration. |
Key Components
Key Components of a Forced Draft Evaporative Condenser
Performance depends on the condenser coil, spray water system, forced draft fan, basin, pump, airflow path, drift eliminator and refrigerant connections. Each component should support safe refrigerant condensation and stable heat rejection.
Condenser Coil
Contains refrigerant vapor and provides heat transfer surface for condensation.
Spray Water System
Distributes water over the coil surface to support evaporative heat transfer.

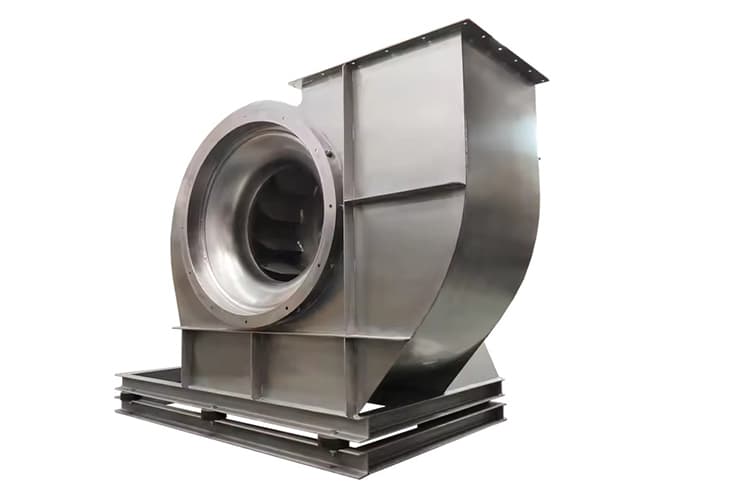

Forced Draft Fan
Pushes air into the condenser and supports heat rejection.
Spray Pump
Circulates spray water from the basin to the distribution system.
Air Inlet Section
Guides air into the condenser and affects airflow distribution and access.
Drift Eliminator
Reduces water droplets carried out by discharge air.
Spray Water Basin
Collects spray water for recirculation and requires cleaning access.
Material Options
Material Options
Material selection affects pressure safety, corrosion resistance, service life and maintenance cost. The best configuration depends on refrigerant type, pressure requirement, water quality, outdoor exposure and project budget.
Condenser Coil Materials
The condenser coil must match refrigerant pressure, corrosion conditions and system safety requirements.
Steel coil
Stainless steel coil
Pressure-rated design
Casing and Frame Materials
Casing and structural materials should match outdoor exposure, corrosion environment and export project requirements.
Galvanized steel
Aluzinc steel
Stainless steel options
Fan and Water Contact Parts
Fan and water contact parts should be selected for airflow performance, corrosion resistance and long-term operation.
Forced draft fan
Spray nozzles
PVC drift eliminator
Stainless steel basin
Water Treatment & Maintenance
Water Treatment and Maintenance
Forced draft evaporative condensers protect the refrigerant inside the coil, but the spray water loop is exposed to air. Proper water treatment and maintenance are essential to prevent coil scaling, corrosion, biological growth and performance loss.
Spray Water Treatment
Controls scaling, corrosion, biological growth and dissolved solids concentration in the spray water loop.
- Monitor water quality
- Control blowdown
- Manage biological growth
Coil and Nozzle Inspection
Clean coil surfaces and uniform spray coverage are essential for stable refrigerant condensing performance.
- Inspect coil condition
- Clean blocked nozzles
- Check spray pattern
Fan, Pump and Basin Maintenance
Forced draft fan performance, spray pump operation and basin cleanliness directly affect heat rejection performance.
- Check fan and motor
- Inspect spray pump
- Clean basin sediment
Advantages
Performance Advantages
Forced draft evaporative condensers are selected when refrigeration systems need evaporative condensing with fan-side access, flexible airflow arrangement and project-specific installation design.
Flexible Airflow Layout
Fans push air into the condenser, supporting special project layouts.
Fan-Side Service Access
Fan and motor access can be convenient depending on condenser design.
Efficient Refrigerant Condensing
Spray water evaporation helps reduce condensing temperature under suitable wet bulb conditions.
Suitable for Ammonia Systems
Can be engineered for ammonia refrigeration projects with proper coil and safety design.
Industrial Refrigeration Use
Suitable for cold storage, food processing, ice plants and process cooling.
Custom Installation Support
Air inlet, fan position and structure can be reviewed according to site conditions.
Energy Saving Potential
Lower condensing temperature can improve compressor efficiency in many refrigeration systems.
Material Flexibility
Coil, casing, basin and water-contact materials can be matched to project conditions.
Custom Engineering
Custom Engineering Options
Thermocore can customize forced draft evaporative condensers according to heat rejection capacity, refrigerant type, coil pressure rating, material, fan arrangement, airflow path, spray water system, voltage, noise requirement, corrosion environment and export shipping requirements.
Thermal Customization
For projects with special heat rejection, condensing temperature or wet bulb requirements.
Heat rejection capacity
Condensing temperature
Wet bulb design
Refrigerant type
Fan & Structure Customization
For projects requiring forced draft fan arrangement, special air inlet direction or low-noise design.
Forced draft fan layout
Air inlet design
Access doors
Low-noise fans
Coil & Export Customization
For pressure rating, corrosion resistance, special voltage, OEM cooperation and international shipping requirements.
Coil pressure rating
Stainless steel coil
Special voltage
Export packaging
Not Sure Whether Forced Draft Evaporative Condenser Is Right for Your System?
Send your refrigerant type, heat rejection capacity, condensing temperature, wet bulb temperature and project layout. Our engineering team will compare forced draft, induced draft, counterflow, crossflow and air-cooled condenser options for your project.
Refrigerant type
Heat rejection
Condensing temperature
Wet bulb
Airflow layout
FAQ
Forced Draft Evaporative Condenser FAQ
These FAQs are written for refrigeration engineers, HVAC contractors, industrial buyers and procurement teams who need to understand forced draft evaporative condenser selection, operation, water treatment and customization.
What is a forced draft evaporative condenser?
A forced draft evaporative condenser is a refrigeration heat rejection device where fans push air into the condenser, usually from the lower or side air inlet area, while refrigerant vapor flows inside a condenser coil. Spray water flows over the outside of the coil, and forced airflow supports evaporation and heat rejection. The refrigerant remains inside the coil and condenses from vapor into liquid as heat is removed through the coil surface, spray water and air.
How does a forced draft evaporative condenser work?
Hot refrigerant vapor from the compressor enters the condenser coil. Spray water is distributed over the outside of the coil. Forced draft fans push air into the condenser and across or through the wetted heat exchange section. A portion of the spray water evaporates and removes heat from the coil surface. As heat is removed, refrigerant vapor inside the coil condenses into liquid and returns to the refrigeration system.
Why choose a forced draft evaporative condenser?
A forced draft evaporative condenser is often selected when a project requires a specific fan arrangement, lower fan position, fan-side service access or a custom airflow layout. Because the fan pushes air into the condenser, the airflow path and equipment structure can be adapted for some refrigeration projects where standard induced draft or top fan arrangements may not be ideal.
What is the difference between forced draft and induced draft evaporative condensers?
In a forced draft evaporative condenser, the fan pushes air into the unit from the inlet side. In an induced draft evaporative condenser, the fan pulls air through the condenser and discharges it from the outlet side, often at the top. Forced draft designs may provide easier fan and motor access in some layouts, while induced draft designs are commonly used for upward discharge and reduced recirculation risk when the site layout is suitable.
What is the difference between a forced draft evaporative condenser and a cooling tower?
A forced draft evaporative condenser directly condenses refrigerant vapor inside a coil, while a cooling tower cools circulating water. In a cooling tower, the cooled water returns to a chiller, heat exchanger or process system. In an evaporative condenser, refrigerant changes phase from vapor to liquid inside the coil, so it functions as a condenser for refrigeration systems rather than a water cooling tower.
What is the difference between a forced draft evaporative condenser and an air-cooled condenser?
An air-cooled condenser rejects heat through dry airflow over finned coils. A forced draft evaporative condenser uses spray water evaporation and forced airflow over a wetted condenser coil. Under suitable wet bulb conditions, an evaporative condenser can often operate at a lower condensing temperature than an air-cooled condenser, which may improve compressor efficiency. However, evaporative condensers require water treatment and spray water maintenance.
What information is needed for model selection?
Important selection data includes refrigerant type, total heat rejection capacity, refrigeration capacity if available, condensing temperature, design wet bulb temperature, compressor operating conditions, project location, power supply, installation space, airflow constraints, water quality, noise requirement, coil material preference and corrosion environment.
Why is wet bulb temperature important for forced draft evaporative condenser selection?
Wet bulb temperature is the key ambient condition because evaporative condensers reject heat mainly through spray water evaporation. The achievable condensing temperature depends strongly on the local design wet bulb temperature. A project in a high wet bulb climate will require different condenser sizing than a project in a cooler or drier climate.
What materials are commonly used?
Common materials include galvanized steel, Aluzinc steel, stainless steel, FRP casing components, steel or stainless steel condenser coils, PVC drift eliminators, spray nozzles, axial or centrifugal fans and structural supports. The right material selection depends on refrigerant type, pressure requirement, water quality, corrosion environment and project budget.
What should I send to get a quotation?
To receive an accurate quotation, send the refrigerant type, total heat rejection capacity, refrigeration capacity if available, condensing temperature, design wet bulb temperature, project location, power supply, installation space, airflow constraints, noise requirement, coil material preference, water quality and any corrosion or customization requirements.
Start Your Project
Need a Forced Draft Evaporative Condenser for Your Refrigeration Project?
Send us your refrigerant type, heat rejection capacity, condensing temperature, wet bulb temperature, project location and airflow layout requirements. Our engineering team will help you select a suitable forced draft evaporative condenser configuration.
