Enhanced Heat Rejection
Multiple heat transfer paths help improve thermal performance for demanding refrigeration loads.

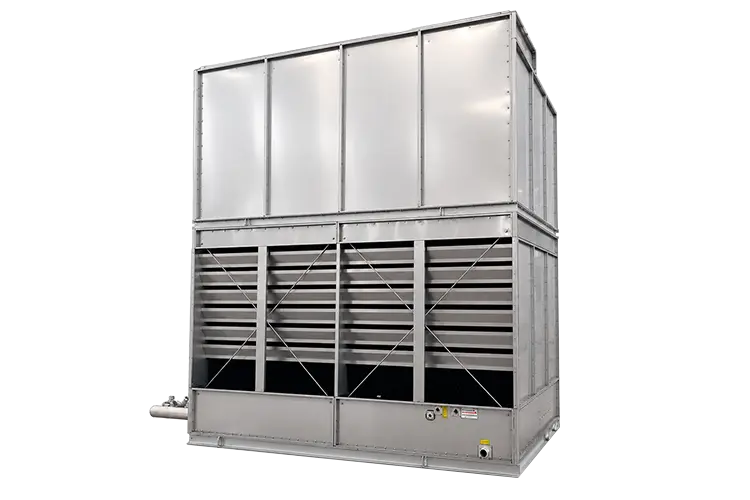

Composite Flow Evaporative Condenser
Composite Flow Evaporative Condenser
Thermocore composite flow evaporative condensers are designed for industrial refrigeration, ammonia refrigeration, cold storage, food processing, ice plants, chemical process cooling and high-load refrigeration systems where stable condensing performance and enhanced heat rejection are important.
A composite flow evaporative condenser combines multiple heat transfer paths in one condenser structure. Refrigerant vapor remains inside the condenser coil, while spray water, airflow and optional fill-assisted or pre-cooling sections work together to remove heat and condense refrigerant vapor into liquid under demanding operating conditions.
Product Overview
Composite Flow Evaporative Condenser Overview
A composite flow evaporative condenser is an evaporative heat rejection device used to condense refrigerant vapor inside a coil. It combines condenser coil heat transfer with spray water evaporation, airflow and optional additional air-water contact sections. This design can improve thermal stability and support demanding industrial refrigeration loads.
This product is suitable for refrigeration systems where the customer needs high heat rejection capacity, stable condensing temperature, reliable operation under variable load and better performance than a simple single-path condenser arrangement.
Equipment TypeEvaporative refrigerant condenser
Flow DesignComposite air-water heat transfer
Primary FluidRefrigerant vapor inside coil
Heat Exchange CoreCoil + spray water + airflow / fill section
Main BenefitEnhanced heat rejection and stable condensing

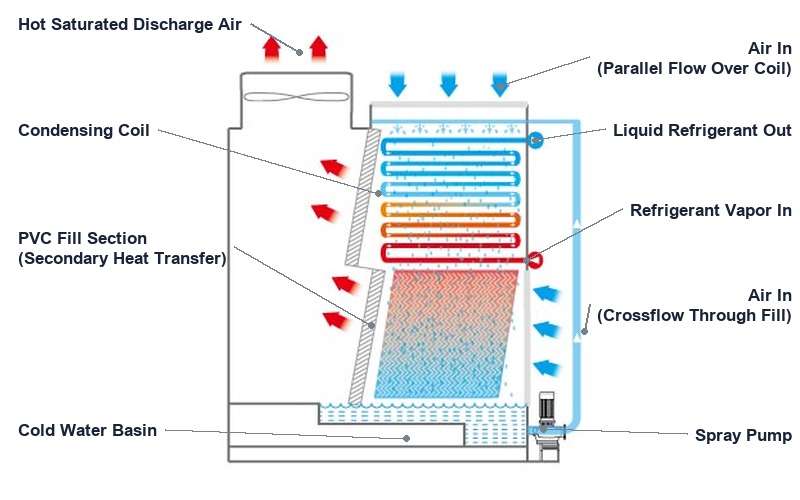

Working Principle
How Does a Composite Flow Evaporative Condenser Work?
The system condenses refrigerant vapor through combined evaporative heat transfer. Refrigerant vapor stays inside the coil. Spray water wets the coil surface, airflow supports evaporation, and optional fill or pre-cooling sections increase air-water contact. Heat transfers from refrigerant to the coil, then to spray water and air.
1
Refrigerant vapor enters the coilHot vapor from the compressor flows into the condenser coil.
2
Spray water wets the condenser coilThe spray system distributes water over the coil surface.
3
Air passes through multiple heat transfer zonesAirflow supports evaporation around coil and optional fill-assisted sections.
4
Composite evaporative cooling removes heatHeat transfers from refrigerant to coil, spray water, air and auxiliary heat transfer sections.
5
Liquid refrigerant leaves the condenserThe condensed liquid returns to the refrigeration system.
Composite Flow Design
Why Choose a Composite Flow Evaporative Condenser?
Composite flow design is selected when a refrigeration project needs more than basic condensing performance. By combining coil heat transfer, spray water evaporation, airflow and optional fill-assisted heat transfer, the condenser can support stronger heat rejection and stable operation under demanding industrial conditions.
Stable Condensing Performance
Composite flow design can support more stable condensing conditions under variable load or ambient conditions.
Suitable for High-Load Systems
Often considered for industrial refrigeration systems requiring strong continuous heat rejection.
Efficient Refrigerant Condensing
Spray water evaporation helps remove heat from the condenser coil and condense refrigerant vapor.
Industrial Refrigeration Reliability
Applicable to cold storage, ammonia refrigeration, food processing, ice plants and process refrigeration.
Custom Refrigeration Design
Coil pressure rating, material, fan, spray system, fill section and refrigerant connections can be configured.
Applications
Applications of Composite Flow Evaporative Condensers
Composite flow evaporative condensers are used where refrigerant vapor must be condensed efficiently under demanding conditions. They are common in larger industrial refrigeration systems, cold storage, food processing and high-load refrigeration projects.
Chemical Plant
Food & Beverage
HVAC
Industrial Process
Industrial Refrigeration
Petrochemical & Refinery
Pharmaceutical
Composite Flow Evaporative Condensers Application Image Placeholder
Comparison
Composite Flow vs Counterflow vs Crossflow Evaporative Condenser
Composite flow, counterflow and crossflow evaporative condensers all condense refrigerant inside a coil using spray water and airflow. The main differences are heat transfer structure, footprint, service access and selection logic.
| Item | Composite Flow Evaporative Condenser | Counterflow Evaporative Condenser | Crossflow Evaporative Condenser |
|---|---|---|---|
| Heat Transfer Design | Combines coil cooling with additional air-water contact or fill-assisted heat transfer | Uses upward airflow against downward spray water over the coil | Uses horizontal airflow across the wetted coil section |
| Performance Focus | Enhanced heat rejection and stable operation under demanding conditions | Compact footprint and efficient vertical heat transfer | Stable heat rejection with service-friendly layout |
| Footprint | Balanced according to capacity and thermal design | Usually more compact | Usually requires more horizontal space |
| Maintenance Access | Depends on composite structure and optional internal sections | Can be tighter due to compact vertical structure | Often easier for side inspection and internal access |
| System Complexity | Usually higher because of combined heat transfer sections | Usually simpler and more compact | Usually straightforward and service-friendly |
| Best For | High-load or variable-load industrial refrigeration systems | Projects where compact installation is important | Projects where maintenance access and serviceability are priorities |
| Selection Logic | Choose when stronger heat rejection and stable condensing are priorities | Choose when footprint and vertical heat transfer are priorities | Choose when inspection access and stable layout matter |
System Comparison
Composite Flow Evaporative Condenser vs Cooling Tower
These two equipment types both reject heat, but they serve different system functions. A composite flow evaporative condenser condenses refrigerant, while a cooling tower cools water.
| Item | Composite Flow Evaporative Condenser | Cooling Tower |
|---|---|---|
| Main Function | Condenses refrigerant vapor inside a coil | Cools circulating water |
| Heat Transfer Method | Coil heat transfer plus spray water evaporation and combined heat transfer sections | Direct water-air evaporative cooling |
| Primary Fluid | Refrigerant inside condenser coil | Water exposed to air |
| Water Use | Requires spray water and make-up water | Requires circulating water and make-up water |
| Typical Application | High-load industrial refrigeration and ammonia systems | HVAC condenser water and process water cooling |
Technical Selection
Technical Selection Guide
Selecting a composite flow evaporative condenser requires refrigeration system data, ambient design data and site information. A professional selection should consider total heat rejection, refrigerant type, condensing temperature, wet bulb temperature, coil pressure rating, spray water quality, optional fill section, installation space and noise requirements.
| Parameter | Why It Matters |
|---|---|
| Heat Rejection Capacity | Determines condenser model and required condensing capability. |
| Refrigerant Type | Affects coil pressure rating, material and connection requirements. |
| Condensing Temperature | Influences compressor efficiency and condenser selection. |
| Design Wet Bulb Temperature | Key ambient limit for evaporative condenser performance. |
| Compressor Operating Conditions | Helps confirm total heat rejection and system load profile. |
| Composite Flow Requirement | Determines whether additional air-water contact or fill-assisted sections are needed. |
| Coil Material / Pressure Rating | Affects safety, corrosion resistance and refrigerant compatibility. |
| Spray Water Quality | Affects scale formation, corrosion, nozzle condition and maintenance. |
| Installation Space | Influences layout, airflow clearance and service access. |
| Noise Requirement | Affects fan selection, fan speed and low-noise configuration. |
Key Components
Key Components of a Composite Flow Evaporative Condenser
Performance depends on the condenser coil, spray water system, fan, basin, pump, airflow path, drift eliminator, optional fill or pre-cooling section and refrigerant connections. Each component should support safe refrigerant condensation and enhanced heat rejection.
Condenser Coil
Contains refrigerant vapor and provides heat transfer surface for condensation.
Spray Water System
Distributes water over the coil surface to support evaporative heat transfer.
Axial Fan
Moves air through the condenser heat exchange sections.
Spray Pump
Circulates spray water from the basin to the distribution system.
Drift Eliminator
Reduces water droplets carried out by discharge air.
Spray Water Basin
Collects spray water for recirculation and requires cleaning access.
Material Options
Material Options
Material selection affects pressure safety, corrosion resistance, service life and maintenance cost. The best configuration depends on refrigerant type, pressure requirement, water quality, outdoor exposure and project budget.
Condenser Coil Materials
The condenser coil must match refrigerant pressure, corrosion conditions and system safety requirements.
Steel coil
Stainless steel coil
Pressure-rated design
Casing and Frame Materials
Casing and structural materials should match outdoor exposure, corrosion environment and export project requirements.
Galvanized steel
Aluzinc steel
Stainless steel options
Water Contact and Fill Parts
Water contact parts should resist scaling, corrosion and long-term spray water exposure.
Spray nozzles
PVC fill
PVC drift eliminator
Stainless steel basin
Water Treatment & Maintenance
Water Treatment and Maintenance
Composite flow evaporative condensers protect the refrigerant inside the coil, but the spray water loop is exposed to air. Proper water treatment and maintenance are essential to prevent coil scaling, fill fouling, corrosion, biological growth and performance loss.
Spray Water Treatment
Controls scaling, corrosion, biological growth and dissolved solids concentration in the spray water loop.
- Monitor water quality
- Control blowdown
- Manage biological growth
Coil, Nozzle and Fill Inspection
Clean coil surfaces, clear nozzles and clean fill sections are important for stable refrigerant condensing performance.
- Inspect coil condition
- Clean blocked nozzles
- Check fill or pre-cooling section
Fan, Pump and Basin Maintenance
Fan airflow, spray pump performance and basin cleanliness directly affect heat rejection performance.
- Check fan operation
- Inspect spray pump
- Clean basin sediment
Advantages
Performance Advantages
Composite flow evaporative condensers are selected when refrigeration systems need enhanced heat rejection, stable condensing performance and reliable operation under demanding industrial conditions.
Enhanced Heat Rejection
Multiple heat transfer paths support stronger thermal performance.
Stable Condensing Performance
Designed to support more stable operation under variable load conditions.
Suitable for Ammonia Systems
Can be engineered for ammonia refrigeration projects with proper coil and safety design.
Flexible Thermal Design
Coil, spray water, airflow and optional fill sections can be configured for project needs.
Industrial Refrigeration Use
Suitable for cold storage, food processing, ice plants and process cooling.
Material Flexibility
Coil, casing, basin and water-contact materials can be matched to project conditions.
Energy Saving Potential
Lower condensing temperature can improve compressor efficiency in many refrigeration systems.
Custom Engineering Support
Capacity, coil, fan, pump, fill section, voltage and layout can be configured according to project data.
Custom Engineering
Custom Engineering Options
Thermocore can customize composite flow evaporative condensers according to heat rejection capacity, refrigerant type, coil pressure rating, material, airflow arrangement, spray water system, fill section, fan configuration, voltage, noise requirement, corrosion environment and export shipping requirements.
Thermal Customization
For projects with special heat rejection, condensing temperature or wet bulb requirements.
Heat rejection capacity
Condensing temperature
Wet bulb design
Refrigerant type
Coil & Structure Customization
For projects requiring special pressure rating, coil material, fill section, refrigerant connections or corrosion protection.
Coil pressure rating
Stainless steel coil
Composite flow layout
Optional fill section
Project & Export Customization
For low noise, special voltage, OEM cooperation and international shipping requirements.
Low-noise fans
Special voltage
OEM label
Export packaging
Not Sure Whether Composite Flow Evaporative Condenser Is Right for Your System?
Send your refrigerant type, heat rejection capacity, condensing temperature, wet bulb temperature and project layout. Our engineering team will compare composite flow, counterflow, crossflow and air-cooled condenser options for your project.
Refrigerant type
Heat rejection
Condensing temperature
Wet bulb
Project layout
FAQ
Composite Flow Evaporative Condenser FAQ
These FAQs are written for refrigeration engineers, HVAC contractors, industrial buyers and procurement teams who need to understand composite flow evaporative condenser selection, operation, water treatment and customization.
What is a composite flow evaporative condenser?
A composite flow evaporative condenser is a refrigeration heat rejection device that combines multiple heat transfer paths to condense refrigerant vapor inside a condenser coil. Refrigerant vapor flows inside the coil, while spray water, airflow and optional fill-assisted or pre-cooling sections remove heat from the outside of the coil. This type of evaporative condenser is used when industrial refrigeration systems require stable condensing performance, higher heat rejection capability and reliable operation under demanding conditions.
How does a composite flow evaporative condenser work?
Hot refrigerant vapor from the compressor enters the condenser coil. Spray water is distributed over the outside of the coil, while airflow passes through the condenser to support evaporation and heat rejection. In a composite flow design, the condenser may combine coil heat transfer with additional air-water contact or fill-assisted heat transfer sections. Heat moves from the refrigerant to the coil wall, then to spray water and air. A portion of spray water evaporates and removes heat, so the refrigerant vapor condenses into liquid.
Why choose a composite flow evaporative condenser?
A composite flow evaporative condenser is often selected when the project requires stronger heat rejection, stable condensing temperature and flexible thermal performance. Compared with simpler condenser structures, composite flow design can combine multiple heat transfer mechanisms, making it suitable for high-load refrigeration systems, variable operating conditions and industrial facilities where continuous operation is important.
What is the difference between composite flow, counterflow and crossflow evaporative condensers?
A composite flow evaporative condenser combines multiple heat transfer paths, such as coil cooling plus additional air-water contact or fill-assisted cooling. A counterflow evaporative condenser mainly uses upward airflow against downward spray water. A crossflow evaporative condenser mainly uses horizontal airflow across the wetted coil section. Composite flow designs are often selected for demanding heat rejection and stable operation, counterflow designs for compact footprint, and crossflow designs for maintenance access.
What is the difference between a composite flow evaporative condenser and a cooling tower?
A composite flow evaporative condenser directly condenses refrigerant vapor inside a coil, while a cooling tower cools circulating water. In a cooling tower, the cooled water returns to a chiller, heat exchanger or process system. In an evaporative condenser, the refrigerant changes phase from vapor to liquid inside the coil, making it a condenser for refrigeration systems rather than a water cooling tower.
What is the difference between a composite flow evaporative condenser and an air-cooled condenser?
An air-cooled condenser rejects heat through dry airflow over finned coils, while a composite flow evaporative condenser uses spray water evaporation, airflow and combined heat transfer sections around a wetted condenser coil. Under suitable wet bulb conditions, evaporative condensers can often operate at a lower condensing temperature than air-cooled condensers, which may improve compressor efficiency. However, evaporative condensers require water treatment and spray water maintenance.
What information is needed for model selection?
Important selection data includes refrigerant type, total heat rejection capacity, refrigeration capacity if available, condensing temperature, design wet bulb temperature, compressor operating conditions, project location, power supply, installation space, water quality, noise requirement, coil material preference, corrosion environment and whether a composite flow or high-performance configuration is required.
Why is wet bulb temperature important for evaporative condenser selection?
Wet bulb temperature is the key ambient condition because evaporative condensers reject heat mainly through spray water evaporation. The achievable condensing temperature depends strongly on the local design wet bulb temperature. A project in a high wet bulb climate will require different condenser sizing than a project in a cooler or drier climate.
What materials are commonly used?
Common materials include galvanized steel, Aluzinc steel, stainless steel, FRP casing components, steel or stainless steel condenser coils, PVC fill, PVC drift eliminators, spray nozzles, axial fans and structural supports. The right material selection depends on refrigerant type, pressure requirement, water quality, corrosion environment and project budget.
What should I send to get a quotation?
To receive an accurate quotation, send the refrigerant type, total heat rejection capacity, refrigeration capacity if available, condensing temperature, design wet bulb temperature, project location, power supply, installation space, noise requirement, coil material preference, water quality and any corrosion or customization requirements.
