Counterflow Evaporative Condenser
Counterflow Evaporative Condenser
Thermocore counterflow evaporative condensers are designed for industrial refrigeration, ammonia refrigeration, cold storage, food processing, ice plants, chemical process cooling and HVAC refrigeration systems where efficient refrigerant condensing and compact installation are important.
In a counterflow evaporative condenser, refrigerant vapor flows inside the condenser coil while spray water moves downward over the coil surface and air flows upward in the opposite direction. This vertical air-water contact supports efficient heat rejection and helps condense refrigerant vapor into liquid under suitable wet bulb conditions.
Product Overview
Counterflow Evaporative Condenser Overview
A counterflow evaporative condenser is an evaporative heat rejection device used to condense refrigerant vapor inside a coil. Refrigerant vapor flows through the condenser coil, spray water flows downward over the outside of the coil, and air enters from the lower section of the condenser and moves upward through the wetted coil area.
This product is suitable for refrigeration systems where the customer needs efficient condensing, compact footprint, lower condensing temperature potential and reliable heat rejection compared with purely air-cooled condenser arrangements.
Equipment TypeEvaporative refrigerant condenser
Airflow DirectionVertical upward counterflow airflow
Primary FluidRefrigerant vapor inside coil
Heat Exchange CoreCoil + spray water + upward airflow
Main BenefitCompact footprint and efficient condensing
Working Principle

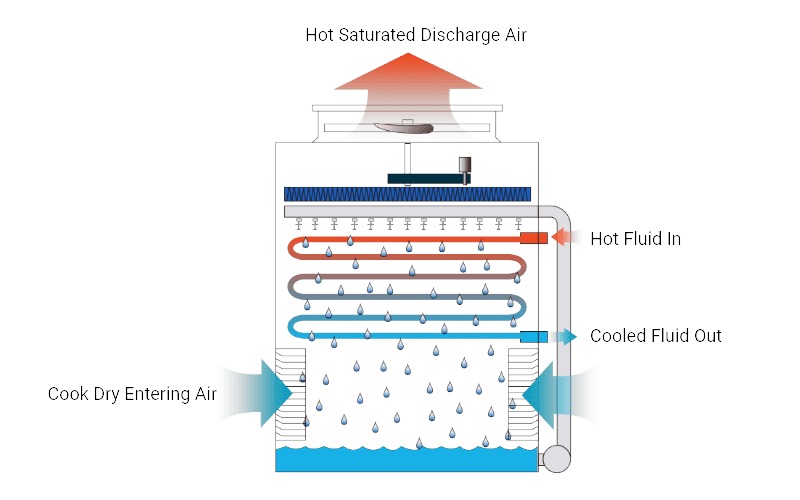

How Does a Counterflow Evaporative Condenser Work?
The system condenses refrigerant vapor through coil heat transfer and evaporative cooling. Refrigerant vapor stays inside the coil. Spray water flows downward over the coil surface, and air moves upward through the wetted heat exchange section. A small portion of spray water evaporates and removes heat from the refrigerant.
1
Refrigerant vapor enters the coilHot vapor from the compressor flows into the condenser coil.
2
Spray water flows downwardThe spray system distributes water over the outside of the coil.
3
Air moves upward through the coil areaCounterflow airflow travels against the downward spray water.
4
Evaporation removes heatHeat transfers from refrigerant to coil, spray water and air.
5
Liquid refrigerant leaves the condenserThe condensed liquid returns to the refrigeration system.
Counterflow Design
Why Choose a Counterflow Evaporative Condenser?
Counterflow design is selected when a refrigeration project needs efficient evaporative condensing in a compact structure. The upward airflow and downward spray water arrangement can support strong heat transfer around the condenser coil while reducing the horizontal footprint required for installation.
Efficient Vertical Heat Transfer
Upward airflow against downward spray water supports strong evaporative heat rejection.
Efficient Refrigerant Condensing
Spray water evaporation helps remove heat from the condenser coil and condense refrigerant vapor.
Suitable for Industrial Refrigeration
Applicable to cold storage, ammonia refrigeration, food processing and industrial cooling systems.
Good for Space-Limited Sites
Useful where rooftop, plant room or outdoor refrigeration equipment space is limited.
Custom Refrigeration Design
Coil pressure rating, material, fan, spray system and refrigerant connections can be configured for the project.
Applications
Applications of Counterflow Evaporative Condensers
Counterflow evaporative condensers are used where refrigerant vapor must be condensed efficiently and the project requires compact refrigeration heat rejection. They are common in cold storage, food processing and industrial refrigeration systems.
Chemical Plant
Food & Beverage
HVAC
Industrial Process
Industrial Refrigeration
Petrochemical & Refinery
Pharmaceutical
Counterflow Evaporative Condensers Application Image Placeholder
Comparison
Counterflow vs Crossflow Evaporative Condenser
Counterflow and crossflow evaporative condensers both use spray water and airflow to condense refrigerant inside a coil. The main differences are airflow direction, footprint, service access and thermal design logic.
| Item | Counterflow Evaporative Condenser | Crossflow Evaporative Condenser |
|---|---|---|
| Airflow Direction | Upward airflow against downward spray water | Horizontal airflow across the wetted coil section |
| Performance Focus | Compact footprint and efficient vertical heat transfer | Stable heat rejection with service-friendly layout |
| Footprint | Usually more compact | Usually requires more horizontal space |
| Maintenance Access | Can be tighter due to compact vertical structure | Often easier for side inspection and internal access |
| Best For | Projects where compact installation and vertical heat exchange are priorities | Projects where maintenance access and serviceability are priorities |
| Selection Logic | Choose when footprint and efficient vertical contact matter | Choose when inspection access and stable layout matter |
System Comparison
Counterflow Evaporative Condenser vs Cooling Tower
These two equipment types both reject heat, but they serve different system functions. A counterflow evaporative condenser condenses refrigerant, while a cooling tower cools water.
| Item | Counterflow Evaporative Condenser | Cooling Tower |
|---|---|---|
| Main Function | Condenses refrigerant vapor inside a coil | Cools circulating water |
| Heat Transfer Method | Coil heat transfer plus spray water evaporation | Direct water-air evaporative cooling |
| Primary Fluid | Refrigerant inside condenser coil | Water exposed to air |
| Water Use | Requires spray water and make-up water | Requires circulating water and make-up water |
| Typical Application | Industrial refrigeration and ammonia systems | HVAC condenser water and process water cooling |
Technical Selection
Technical Selection Guide
Selecting a counterflow evaporative condenser requires refrigeration system data, ambient design data and site information. A professional selection should consider total heat rejection, refrigerant type, condensing temperature, wet bulb temperature, coil pressure rating, spray water quality, installation space and noise requirements.
| Parameter | Why It Matters |
|---|---|
| Heat Rejection Capacity | Determines condenser model and required condensing capability. |
| Refrigerant Type | Affects coil pressure rating, material and connection requirements. |
| Condensing Temperature | Influences compressor efficiency and condenser selection. |
| Design Wet Bulb Temperature | Key ambient limit for evaporative condenser performance. |
| Compressor Operating Conditions | Helps confirm total heat rejection and system load profile. |
| Coil Material / Pressure Rating | Affects safety, corrosion resistance and refrigerant compatibility. |
| Spray Water Quality | Affects scale formation, corrosion, nozzle condition and maintenance. |
| Installation Space | Influences counterflow layout, airflow clearance and service access. |
| Noise Requirement | Affects fan selection, fan speed and low-noise configuration. |
| Project Location | Determines climate, wet bulb, corrosion environment and shipping plan. |
Key Components
Key Components of a Counterflow Evaporative Condenser
Performance depends on the condenser coil, spray water system, fan, basin, pump, airflow path, drift eliminator and refrigerant connections. Each component should support safe refrigerant condensation and stable heat rejection.
Condenser Coil
Contains refrigerant vapor and provides heat transfer surface for condensation.
Spray Water System
Distributes water over the coil surface to support evaporative heat transfer.

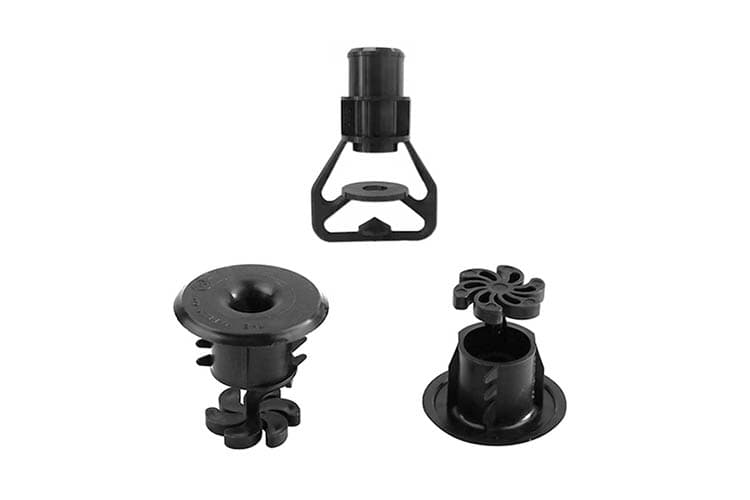

Spray Nozzles
Provide uniform water coverage and help prevent dry coil areas.
Axial Fan
Moves air upward through the condenser heat exchange section.
Spray Pump
Circulates spray water from the basin to the distribution system.
Drift Eliminator
Reduces water droplets carried out by discharge air.
Spray Water Basin
Collects spray water for recirculation and requires cleaning access.
Material Options
Material Options
Material selection affects pressure safety, corrosion resistance, service life and maintenance cost. The best configuration depends on refrigerant type, pressure requirement, water quality, outdoor exposure and project budget.
Condenser Coil Materials
The condenser coil must match refrigerant pressure, corrosion conditions and system safety requirements.
Steel coil
Stainless steel coil
Pressure-rated design
Casing and Frame Materials
Casing and structural materials should match outdoor exposure, corrosion environment and export project requirements.
Galvanized steel
Aluzinc steel
Stainless steel options
Water Contact Parts
Water contact parts should resist scaling, corrosion and long-term spray water exposure.
Spray nozzles
PVC drift eliminator
Stainless steel basin
Water Treatment & Maintenance
Water Treatment and Maintenance
Counterflow evaporative condensers protect the refrigerant inside the coil, but the spray water loop is exposed to air. Proper water treatment and maintenance are essential to prevent coil scaling, corrosion, biological growth and performance loss.
Spray Water Treatment
Controls scaling, corrosion, biological growth and dissolved solids concentration in the spray water loop.
- Monitor water quality
- Control blowdown
- Manage biological growth
Coil and Nozzle Inspection
Clean coil surfaces and uniform spray coverage are essential for stable refrigerant condensing performance.
- Inspect coil condition
- Clean blocked nozzles
- Check spray pattern
Fan, Pump and Basin Maintenance
Fan airflow, spray pump performance and basin cleanliness directly affect heat rejection performance.
- Check fan operation
- Inspect spray pump
- Clean basin sediment
Advantages
Performance Advantages
Counterflow evaporative condensers are selected when refrigeration systems need efficient condensing, compact footprint and stable evaporative heat rejection.
Compact Footprint
Vertical airflow design helps reduce horizontal installation space.
Efficient Refrigerant Condensing
Spray water evaporation helps reduce condensing temperature under suitable wet bulb conditions.
Suitable for Ammonia Systems
Can be engineered for ammonia refrigeration projects with proper coil and safety design.
Strong Vertical Heat Transfer
Upward airflow against downward spray water supports effective heat rejection.
Industrial Refrigeration Use
Suitable for cold storage, food processing, ice plants and process cooling.
Material Flexibility
Coil, casing, basin and water-contact materials can be matched to project conditions.
Energy Saving Potential
Lower condensing temperature can improve compressor efficiency in many refrigeration systems.
Custom Engineering Support
Capacity, coil, fan, pump, voltage and layout can be configured according to project data.
Custom Engineering
Custom Engineering Options
Thermocore can customize counterflow evaporative condensers according to heat rejection capacity, refrigerant type, coil pressure rating, material, airflow arrangement, spray water system, fan configuration, voltage, noise requirement, corrosion environment and export shipping requirements.
Thermal Customization
For projects with special heat rejection, condensing temperature or wet bulb requirements.
Heat rejection capacity
Condensing temperature
Wet bulb design
Refrigerant type
Coil & Structure Customization
For projects requiring special pressure rating, coil material, refrigerant connections or corrosion protection.
Coil pressure rating
Stainless steel coil
Counterflow layout
Anti-corrosion design
Project & Export Customization
For low noise, special voltage, OEM cooperation and international shipping requirements.
Low-noise fans
Special voltage
OEM label
Export packaging
Not Sure Whether Counterflow Evaporative Condenser Is Right for Your System?
Send your refrigerant type, heat rejection capacity, condensing temperature, wet bulb temperature and project layout. Our engineering team will compare counterflow, crossflow, composite flow and air-cooled condenser options for your project.
Refrigerant type
Heat rejection
Condensing temperature
Wet bulb
Project layout
FAQ
Counterflow Evaporative Condenser FAQ
These FAQs are written for refrigeration engineers, HVAC contractors, industrial buyers and procurement teams who need to understand counterflow evaporative condenser selection, operation, water treatment and customization.
What is a counterflow evaporative condenser?
A counterflow evaporative condenser is a refrigeration heat rejection device where refrigerant vapor flows inside a condenser coil, spray water flows downward over the coil surface, and air moves upward in the opposite direction. A portion of the spray water evaporates and removes heat from the refrigerant, allowing the refrigerant vapor to condense into liquid. Counterflow evaporative condensers are widely used in industrial refrigeration, ammonia refrigeration, cold storage, food processing and HVAC refrigeration systems.
How does a counterflow evaporative condenser work?
Hot refrigerant vapor from the compressor enters the condenser coil. Spray water is distributed from the upper spray system and flows downward over the coil surface. At the same time, air enters from the lower section and moves upward through the wetted coil area. Heat transfers from the refrigerant to the coil wall, then to spray water and air. A small portion of spray water evaporates and removes heat, so the refrigerant vapor condenses into liquid and returns to the refrigeration system.
Why choose a counterflow evaporative condenser?
A counterflow evaporative condenser is often selected when the project requires efficient refrigerant condensing in a compact footprint. The upward airflow and downward spray water arrangement creates strong vertical air-water contact around the condenser coil. This makes counterflow condensers suitable for refrigeration projects where space efficiency, condensing performance and stable heat rejection are important.
What is the difference between counterflow and crossflow evaporative condensers?
In a counterflow evaporative condenser, air moves upward against the downward spray water flow. In a crossflow evaporative condenser, air moves horizontally across the wetted coil section. Counterflow designs are often preferred for compact footprint and efficient vertical heat transfer, while crossflow designs are often selected for side-access maintenance and service-friendly layouts.
What is the difference between a counterflow evaporative condenser and a cooling tower?
A counterflow evaporative condenser directly condenses refrigerant vapor inside a coil, while a cooling tower cools circulating water. In a cooling tower, the cooled water returns to a chiller, heat exchanger or process system. In an evaporative condenser, the refrigerant changes phase from vapor to liquid inside the coil, which makes it a condenser for refrigeration systems rather than a water cooling tower.
What is the difference between a counterflow evaporative condenser and an air-cooled condenser?
An air-cooled condenser rejects heat through air passing over dry finned coils. A counterflow evaporative condenser uses spray water evaporation and upward airflow over a wetted coil surface. Under suitable wet bulb conditions, an evaporative condenser can often operate at a lower condensing temperature than an air-cooled condenser, which may improve refrigeration system efficiency. However, evaporative condensers require water treatment and spray water maintenance.
What information is needed for model selection?
Important selection data includes refrigerant type, heat rejection capacity, refrigeration capacity if available, condensing temperature, design wet bulb temperature, compressor operating conditions, project location, power supply, installation space, water quality, noise requirement, coil material preference and corrosion environment.
Why is wet bulb temperature important for evaporative condenser selection?
Wet bulb temperature is the key ambient condition because evaporative condensers reject heat mainly through spray water evaporation. The achievable condensing temperature depends strongly on the local design wet bulb temperature. A project in a high wet bulb climate will require different condenser sizing than a project in a cooler or drier climate.
What materials are commonly used?
Common materials include galvanized steel, Aluzinc steel, stainless steel, FRP casing components, steel or stainless steel condenser coils, PVC drift eliminators, spray nozzles, axial fans and structural supports. The right material selection depends on refrigerant type, pressure requirement, water quality, corrosion environment and project budget.
What should I send to get a quotation?
To receive an accurate quotation, send the refrigerant type, total heat rejection capacity, refrigeration capacity if available, condensing temperature, design wet bulb temperature, project location, power supply, installation space, noise requirement, coil material preference, water quality and any corrosion or customization requirements.
Start Your Project
Need a Counterflow Evaporative Condenser for Your Refrigeration Project?
Send us your refrigerant type, heat rejection capacity, condensing temperature, wet bulb temperature, project location and layout requirements. Our engineering team will help you select a suitable counterflow evaporative condenser configuration.
