Low-Profile Installation
The horizontal structure can reduce overall equipment height for rooftops and height-sensitive sites.

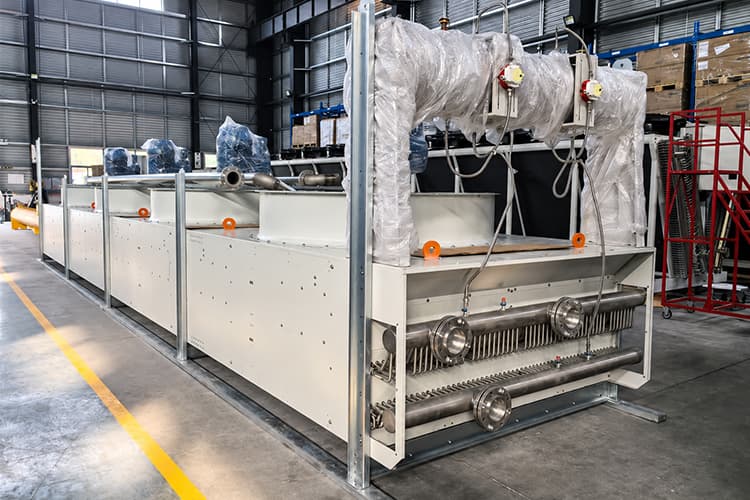

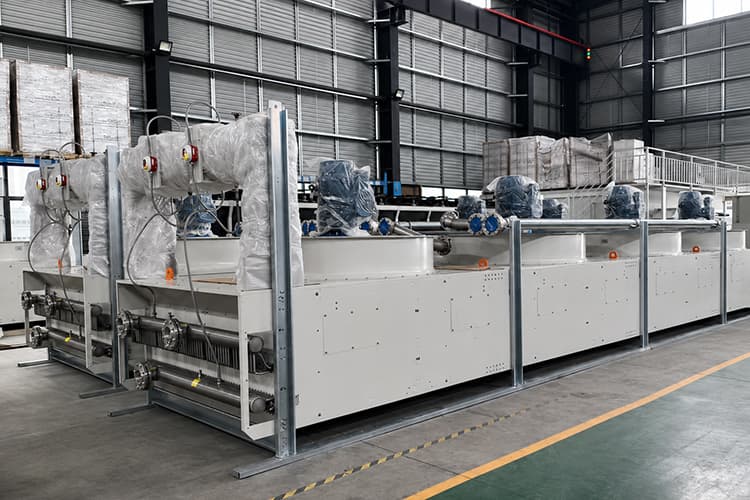

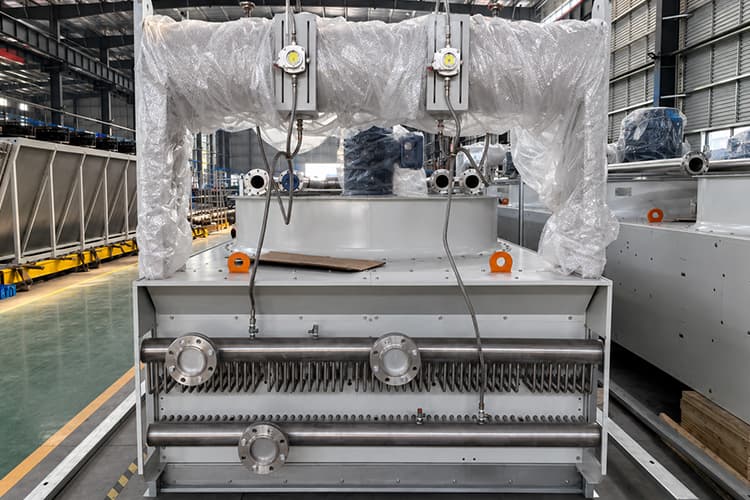

Horizontal Dry Cooler
Horizontal Dry Cooler
Thermocore horizontal dry coolers are designed for HVAC systems, industrial process cooling, data center free cooling, closed-loop glycol systems, compressor cooling and manufacturing facilities where low-profile installation, low water consumption and reliable air-cooled heat rejection are important.
The horizontal structure provides a practical solution for rooftops, equipment platforms and height-sensitive sites. Water or glycol remains inside the finned tube coils, while axial fans move ambient air across the coil surface to reject heat without an open evaporative water loop during standard dry operation.
Product Overview
Horizontal Dry Cooler Overview
A horizontal dry cooler is an air-cooled heat exchanger that uses finned tube coils and axial fans to reject heat from a closed fluid loop. The process fluid stays inside the coil, while ambient air flows across the external fin surface. Heat is rejected to the air by sensible heat transfer rather than open evaporative cooling.
This product is suitable for projects that need low water consumption, closed-loop fluid protection, low-profile outdoor installation, simple operation and reduced water treatment requirements compared with open cooling towers.
Cooling TypeAir-cooled sensible heat rejection
Unit LayoutHorizontal / low-profile coil and fan structure
Fluid LoopClosed-loop water or glycol
Heat Exchange CoreFinned coils + axial fans + ambient air
Main BenefitLow-profile installation and low water use
Working Principle

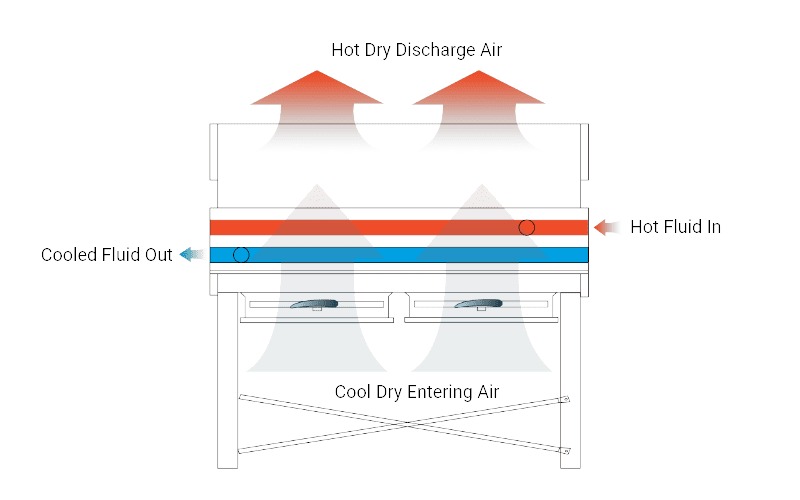

How Does a Horizontal Dry Cooler Work?
The system rejects heat through dry air cooling. Hot fluid flows inside the finned tube coils. Axial fans move outdoor air across the coil surface. Heat transfers from the fluid to the coil tubes, from the tubes to the fins, and from the fins to the air stream.
1
Hot fluid enters the coilWater, glycol or process fluid enters the closed finned tube coil circuit.
2
Fluid flows through horizontal coil circuitsThe coil arrangement is designed for the required flow rate, pressure drop and heat load.
3
Fans move ambient air across the coilsAxial fans create airflow through the coil surface.
4
Sensible heat is rejected to airHeat transfers from fluid to tube, fin and outdoor air.
5
Cooled fluid returns to the systemThe fluid remains in a closed loop and returns to the process or heat exchanger.
Horizontal Design
Why Choose a Horizontal Dry Cooler?
Horizontal dry coolers are selected when a project needs dry air-cooled heat rejection in a lower profile structure. They are especially useful for sites with height limitations, rooftop visual constraints, equipment platform restrictions or specific airflow and access requirements.
Low Water Consumption
Standard dry operation rejects heat without an open evaporative water loop or continuous make-up water.
Closed-Loop Fluid Protection
Water or glycol stays inside the coil circuit and is not exposed to outside air.
Flexible Airflow Layout
The horizontal layout can be adapted to certain site airflow and service access requirements.
Free Cooling Potential
Can support free cooling when ambient air temperature is low enough to reduce or bypass chiller operation.
Custom Fan and Control Options
Fan speed control, EC fans, low-noise design, coil coatings and control panels can be customized.
Applications
Applications of Horizontal Dry Coolers
Horizontal dry coolers are used where a closed fluid loop needs to reject heat to ambient air with little or no water consumption. They are suitable for HVAC, industrial process cooling, data center cooling and low-profile outdoor installation projects.
Compressor
Data Center
HVAC
Industrial Process
Industrial Refrigeration
Pharmaceutical
Plastic Processing
Horizontal Dry Coolers Application Image Placeholder
Comparison
Horizontal Dry Cooler vs V Type Dry Cooler
Horizontal and V type dry coolers both reject heat through finned coils and ambient air. The main differences are equipment profile, coil arrangement, capacity density, airflow layout and installation preference.
| Item | Horizontal Dry Cooler | V Type Dry Cooler |
|---|---|---|
| Coil Arrangement | Flat or low-profile horizontal coil and fan structure | Two angled coil banks arranged in a V shape |
| Equipment Profile | Lower profile, useful for height-sensitive sites | Higher profile but often better capacity density |
| Capacity Density | Suitable for lower profile or specific airflow layouts | Higher coil surface area within a compact footprint |
| Footprint | Can require longer layout depending on capacity | Compact for medium to large heat rejection loads |
| Best For | Rooftops, equipment platforms and sites with height restrictions | Higher capacity outdoor dry cooling and free cooling projects |
| Selection Logic | Choose when low profile, height control and layout flexibility matter | Choose when capacity density and compact footprint are priorities |
System Comparison
Horizontal Dry Cooler vs Cooling Tower vs Adiabatic Cooler
These three heat rejection solutions serve different project priorities. A horizontal dry cooler minimizes water use and provides a low-profile closed-loop solution, a cooling tower provides evaporative cooling closer to wet bulb temperature, and an adiabatic cooler combines dry cooling with limited water-assisted pre-cooling during hot conditions.
| Item | Horizontal Dry Cooler | Cooling Tower | Adiabatic Cooler |
|---|---|---|---|
| Cooling Method | Sensible air cooling through finned coils | Evaporative cooling with water exposed to air | Dry cooling with water-assisted air pre-cooling when needed |
| Water Use | Very low or none in standard dry operation | Continuous make-up water required | Lower than cooling tower, higher than dry-only operation |
| Fluid Protection | Closed-loop fluid inside coils | Open water loop in many systems | Closed-loop fluid inside coils |
| Temperature Limit | Limited by ambient dry bulb temperature | Limited by wet bulb temperature | Can approach lower temperatures than dry-only operation |
| Best For | Low-profile, low-water closed-loop cooling | Lowest practical evaporative water temperature | Projects balancing water saving and hot-weather performance |
Technical Selection
Technical Selection Guide
Selecting a horizontal dry cooler requires fluid data, ambient air conditions and site layout information. A professional selection should consider heat load, fluid type, glycol concentration, flow rate, inlet and outlet temperatures, dry bulb temperature, altitude, fan noise, height limitation, coil material and control strategy.
| Parameter | Why It Matters |
|---|---|
| Heat Rejection Capacity | Determines dry cooler size and required heat transfer capability. |
| Fluid Type | Water, glycol or process fluid affects heat transfer and pressure drop. |
| Glycol Concentration | Affects viscosity, freezing point, coil sizing and pump power. |
| Fluid Flow Rate | Influences coil circuiting, pressure drop and heat transfer. |
| Inlet Fluid Temperature | Defines the hot-side operating condition. |
| Outlet Fluid Temperature | Defines the required cooling target. |
| Design Dry Bulb Temperature | Main ambient condition for dry cooler performance. |
| Altitude | Affects air density and fan/coil performance. |
| Height Limitation | Determines whether a horizontal low-profile layout is preferred. |
| Noise Requirement | Affects fan size, speed, quantity and control mode. |
| Control Strategy | Fan staging or speed control affects energy use and outlet temperature stability. |
Key Components
Key Components of a Horizontal Dry Cooler
Performance depends on the finned coils, fans, casing, frame, fluid headers, controls and airflow clearance. Each component should support stable heat rejection, low-profile installation and practical maintenance.
Horizontal Finned Coils
The core heat exchange section where fluid heat is transferred to air.
Axial Fan
Moves ambient air across the coil surface to remove heat.
Fluid Headers and Connections
Distributes fluid into coil circuits and collect cooled fluid from the unit.
Fan Motor and Drive System
Provides fan power and can be configured for fixed speed, staged or variable speed operation.
Casing and Frame
Support the coils and fans and protect the unit in outdoor environments.
Material Options
Material Options
Material selection affects corrosion resistance, heat transfer, service life and maintenance cost. The best configuration depends on fluid type, ambient environment, coastal exposure, industrial pollution and budget.
Coil Materials
Coil material should match heat transfer requirements, fluid compatibility and corrosion environment.
Copper tube
Aluminum fin
Stainless steel tube
Epoxy-coated fins
Casing and Frame Materials
Casing and structural materials should match outdoor exposure, corrosion environment and export requirements.
Galvanized steel
Aluzinc steel
Stainless steel options
Fan and Electrical Options
Fan and control selections affect energy consumption, noise level, temperature stability and part-load performance.
AC fan
EC fan
Variable speed control
Low-noise option
Maintenance
Maintenance and Operation Considerations
A horizontal dry cooler requires less water-side maintenance than evaporative equipment, but coil cleanliness and airflow management are critical. Dust, leaves, industrial particles and blocked air paths can reduce heat transfer and increase fan energy use.
Coil Cleaning
Finned coils should be kept clean to maintain airflow and heat transfer efficiency.
- Inspect fin surface
- Remove dust and debris
- Avoid fin damage during cleaning
Fan and Electrical Check
Fans, motors, guards, wiring and control systems should be inspected regularly.
- Check fan operation
- Inspect motor condition
- Verify control signals
Fluid Loop Management
Closed-loop fluid condition affects corrosion, freezing protection and heat transfer.
- Check glycol concentration
- Monitor inhibitors
- Inspect leaks and pressure
Advantages
Performance Advantages
Horizontal dry coolers are selected when customers need low-profile air-cooled heat rejection, closed-loop fluid protection and low water consumption.
Low-Profile Design
Suitable for rooftops, platforms and height-sensitive equipment areas.
Low Water Use
Standard dry operation avoids continuous evaporative make-up water.
Closed Fluid Loop
Fluid remains inside the coil and is not exposed to air or spray water.
Free Cooling Potential
Can reduce chiller operation when outdoor air temperature is favorable.
No Plume in Dry Operation
Dry heat rejection avoids visible evaporative plume under normal dry operation.
Reduced Water Treatment
No open spray water loop is required in standard dry cooling mode.
Flexible Controls
Fan staging, VFD or EC fan options can improve part-load efficiency.
Outdoor Reliability
Designed for rooftop, platform and industrial outdoor installation.
Custom Engineering
Custom Engineering Options
Thermocore can customize horizontal dry coolers according to heat rejection capacity, fluid type, coil material, fan configuration, noise requirement, control strategy, casing material, installation layout, height limitation and export shipping requirements.
Thermal Customization
For projects with special heat load, fluid temperature, approach or ambient dry bulb requirements.
Heat rejection
Flow rate
Approach temperature
Dry bulb design
Coil & Material Customization
For corrosion resistance, glycol operation, special fluid compatibility and harsh environments.
Copper / aluminum coil
Stainless coil
Coated fins
Anti-corrosion design
Fan & Layout Customization
For low noise, energy saving, part-load control, height restrictions and BMS integration.
EC fans
VFD control
Low-profile layout
BMS signal
Not Sure Whether Horizontal Dry Cooler Is Right for Your Project?
Send your heat rejection capacity, fluid type, glycol concentration, flow rate, inlet and outlet temperature, design dry bulb temperature and installation layout. Our engineering team will compare horizontal dry cooler, V type dry cooler, adiabatic cooler and cooling tower options for your project.
Heat rejection
Fluid / glycol
Flow rate
Dry bulb
Height limitation
FAQ
Horizontal Dry Cooler FAQ
These FAQs are written for HVAC engineers, industrial buyers, data center teams and contractors who need to understand horizontal dry cooler selection, operation, controls, maintenance and customization.
What is a horizontal dry cooler?
A horizontal dry cooler is an air-cooled heat rejection unit with finned tube coils and fans arranged in a low-profile horizontal structure. Water, glycol or process fluid flows inside the closed coil circuit, while ambient air passes across the finned coil surface. Heat transfers from the fluid to the coil tubes and fins, then to the outdoor air. Unlike open cooling towers, a horizontal dry cooler normally rejects heat without an open evaporative water loop.
How does a horizontal dry cooler work?
Hot fluid enters the finned tube coil and flows through the closed coil circuit. Axial fans move ambient air across the coil surface. Heat transfers from the fluid to the tube wall, from the tubes to the fins, and from the fins to the air stream. The cooled fluid leaves the coil and returns to the chiller, process equipment, heat exchanger, data center loop or industrial cooling system.
Why choose a horizontal dry cooler?
A horizontal dry cooler is often selected when the project needs low-profile installation, closed-loop fluid protection, low water consumption and simple outdoor air-cooled heat rejection. Its flat or horizontal structure can be useful for rooftops, equipment platforms, areas with height restrictions, and projects where airflow direction or visual profile must be considered.
What is the difference between a horizontal dry cooler and a V type dry cooler?
A horizontal dry cooler usually uses a flatter coil and fan arrangement, making it useful for low-profile installations or specific airflow layouts. A V type dry cooler uses angled coil banks arranged in a V shape, often providing more coil surface area within a compact footprint for medium to large heat rejection loads. Horizontal dry coolers are often selected for height-sensitive sites, while V type dry coolers are often selected for higher capacity density.
What is the difference between a horizontal dry cooler and a cooling tower?
A horizontal dry cooler rejects heat through sensible air cooling over finned coils and keeps the process fluid inside a closed coil circuit. A cooling tower rejects heat mainly through evaporative cooling and normally exposes water to air. Dry coolers use little or no water during standard operation, while cooling towers can reach lower water temperatures closer to wet bulb temperature but require make-up water and water treatment.
What is the difference between a horizontal dry cooler and an adiabatic cooler?
A standard horizontal dry cooler uses ambient air only to cool the fluid. An adiabatic cooler adds a pre-cooling or wetted media system to reduce the air temperature before it reaches the coil during hot conditions. Adiabatic coolers can provide lower outlet fluid temperatures than dry-only operation, but they use some water and require additional water-side maintenance.
What information is needed for model selection?
Important selection data includes heat rejection capacity, fluid type, glycol concentration if applicable, fluid flow rate, inlet fluid temperature, required outlet fluid temperature, design dry bulb temperature, altitude, project location, installation space, height limitation, noise requirement, power supply and material preference.
Why is dry bulb temperature important for horizontal dry cooler selection?
Dry bulb temperature is the main ambient design condition for dry coolers because the unit rejects heat through sensible air cooling. The leaving fluid temperature is limited by the ambient dry bulb temperature and the selected approach. A high design dry bulb temperature requires larger coil surface area, more airflow or a higher allowed outlet fluid temperature.
What materials are commonly used?
Common material options include copper tubes, aluminum fins, stainless steel tubes, galvanized steel casing, Aluzinc steel casing, stainless steel casing, epoxy-coated fins and special anti-corrosion coatings. Material selection should consider ambient environment, coastal exposure, industrial pollution, fluid compatibility and required service life.
What should I send to get a quotation?
To receive an accurate quotation, send the heat rejection capacity, fluid type, glycol concentration, flow rate, inlet and outlet fluid temperatures, design dry bulb temperature, project location, altitude, power supply, installation space, height limitation, noise requirement, material preference and any control or customization requirements.
