Enhanced Heat Transfer
Multiple heat transfer paths help improve thermal performance compared with a simple single-path configuration.

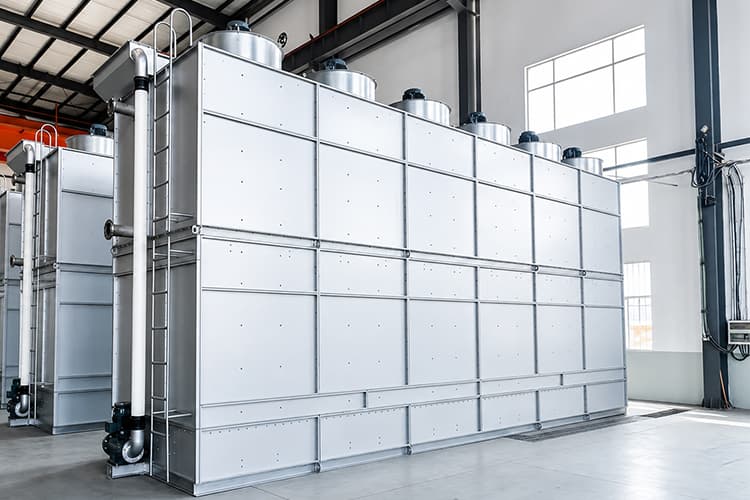

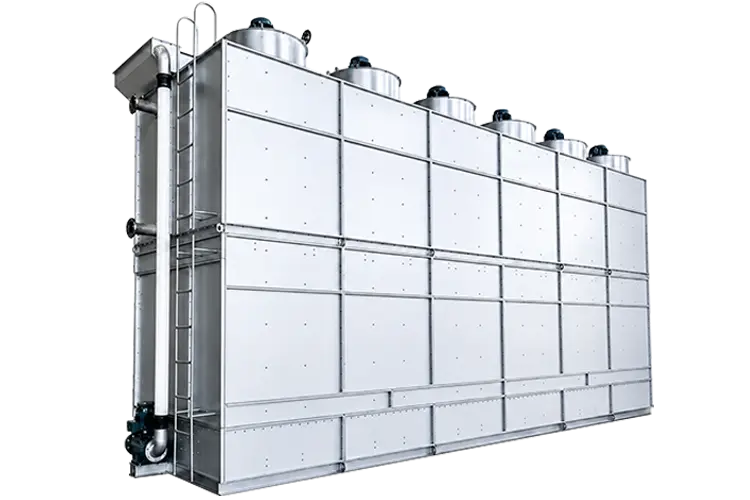

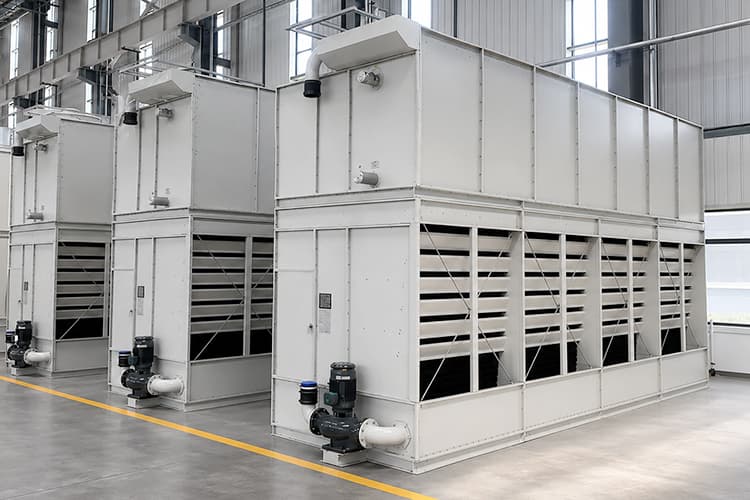

Composite Flow Closed Circuit Cooling Tower
Composite Flow Closed Circuit Cooling Tower
Thermocore composite flow closed circuit cooling towers are designed for HVAC, industrial process cooling, equipment cooling, refrigeration support and manufacturing applications where clean process fluid, stable heat rejection and higher thermal performance are important.
The composite flow design combines multiple heat transfer paths in one closed circuit cooling tower structure. The process fluid remains isolated inside the coil, while spray water, airflow and optional pre-cooling or fill-assisted sections work together to improve heat rejection and support reliable long-term operation.
Product Overview
Composite Flow Closed Circuit Cooling Tower Overview
A composite flow closed circuit cooling tower is a closed-loop evaporative cooling system designed to improve heat rejection by combining multiple heat transfer paths. The process fluid flows inside a heat exchange coil and does not directly contact air or spray water. Heat is removed from the coil surface through spray water evaporation, airflow and, depending on the configuration, an additional pre-cooling or fill-assisted section.
This product is suitable for projects that require cleaner process fluid, higher cooling stability and stronger thermal performance than a basic cooling tower configuration. It is often considered for industrial systems with continuous operation, larger heat loads or demanding operating conditions.
Cooling TypeIndirect evaporative cooling
Flow DesignComposite air-water heat transfer
Fluid LoopClosed-loop process fluid
Heat Exchange CoreCoil + spray water + airflow / fill section
Main BenefitEnhanced performance and stable operation
Working Principle
How Does a Composite Flow Closed Circuit Cooling Tower Work?
The system removes heat through a combination of indirect evaporative cooling and additional air-water heat transfer. Hot process fluid stays inside the coil. Spray water flows over the coil surface, air passes through the tower, and optional fill or pre-cooling sections can increase heat exchange before or around the coil area.
1
Hot process fluid enters the coilThe main fluid remains isolated inside the closed heat exchange coil.
2
Spray water wets the coil surfaceThe spray system distributes water over the outside of the coil.
3
Air passes through multiple heat transfer zonesAirflow supports evaporation and can interact with coil and fill-assisted sections.
4
Evaporation and contact cooling remove heatHeat transfers from the process fluid to coil, spray water and air.
5
Cooled fluid returns to the systemThe process fluid leaves the coil without direct exposure to air or spray water.
Composite Flow Design
Why Choose a Composite Flow Closed Circuit Cooling Tower?
Composite flow design is selected when a project needs more than basic closed-loop cooling. By combining coil heat exchange, spray water evaporation, airflow and optional fill-assisted heat transfer, the tower can provide stronger thermal performance and stable operation for demanding industrial systems.
Stable Operation Under Variable Load
Composite flow design can support more stable cooling when load or ambient conditions change.
Closed Loop Fluid Protection
The process fluid stays inside the coil and is not directly exposed to outside air or spray water.
Suitable for Higher Heat Loads
Often considered for industrial systems requiring stronger heat rejection and continuous operation.
Balanced Footprint and Performance
The structure can be engineered to balance heat transfer capacity, installation space and service needs.
Flexible Project Customization
Coil material, fill section, casing, fan system, basin and anti-corrosion options can be customized.
Applications
Applications of Composite Flow Closed Circuit Cooling Towers
Composite flow closed circuit cooling towers are used where the process fluid should remain protected and the system requires stronger or more stable heat rejection. They are suitable for industrial process cooling, HVAC systems and equipment cooling applications.
Chemical Plant
Compressor
Data Center
Food & Beverage
HVAC
Industrial Process
Industrial Refrigeration
Injection Molding
Petrochemical & Refinery
Pharmaceutical
Plastic Processing
Power Plant
Steel & Metallurgy
Composite Flow Closed Circuit Cooling Towers Application Image Placeholder
Comparison
Composite Flow vs Counterflow vs Crossflow Closed Circuit Cooling Tower
Composite flow, counterflow and crossflow closed circuit cooling towers all protect the process fluid inside a coil, but they differ in airflow structure, maintenance characteristics, installation footprint and thermal design logic. This comparison helps engineers and buyers understand which configuration is more suitable for a given cooling project.
| Item | Composite Flow Closed Circuit Cooling Tower | Counterflow Closed Circuit Cooling Tower | Crossflow Closed Circuit Cooling Tower |
|---|---|---|---|
| Heat Transfer Design | Combines multiple heat transfer paths, such as coil cooling plus additional air-water contact or fill-assisted pre-cooling | Mainly uses upward airflow against downward spray water over the coil | Mainly uses horizontal airflow across the coil and spray water section |
| Airflow Characteristic | Composite arrangement depending on the thermal design | Vertical upward airflow | Horizontal side airflow |
| Performance Focus | Enhanced heat rejection and stable operation under demanding conditions | Compact footprint and efficient vertical heat exchange | Stable performance with easier maintenance access in many layouts |
| Footprint | Balanced according to project design and capacity requirement | Usually more compact | Usually requires more horizontal space |
| Maintenance Access | Depends on tower structure and optional internal sections | Can be tighter due to compact structure | Often easier in many layouts |
| System Complexity | Usually higher because of combined heat transfer sections | Usually simpler and more compact | Usually straightforward and service-friendly |
| Best For | High-load or variable-load industrial cooling systems requiring strong thermal performance | Projects where compact installation is important | Projects where serviceability and easier access are important |
| Selection Logic | Choose when stronger heat rejection and stable operation are priorities | Choose when footprint is limited | Choose when maintenance access and simpler inspection are priorities |
System Comparison
Composite Flow Closed Circuit Cooling Tower vs Open Cooling Tower
The key difference is fluid protection. Open towers expose circulating water directly to air, while composite flow closed circuit towers keep the process fluid inside a coil and use spray water and airflow outside the coil for heat rejection.
| Item | Composite Flow Closed Circuit Cooling Tower | Open Cooling Tower |
|---|---|---|
| Fluid Protection | Process fluid stays inside the heat exchange coil | Circulating water directly contacts air |
| Contamination Risk | Lower in the main process fluid loop | Higher because water is exposed to air |
| Heat Transfer | Indirect evaporative cooling with combined heat transfer paths | Direct evaporative cooling |
| Initial Cost | Usually higher | Usually lower |
| Maintenance Focus | Coil surface, spray water, basin, fan, pump and optional fill section | Fill, basin, water distribution, water treatment and fan |
| Best For | Clean closed-loop process cooling with enhanced heat rejection | General condenser water and water cooling applications |
Technical Selection
Technical Selection Guide
Selecting a composite flow closed circuit cooling tower requires accurate operating data. A professional selection should consider heat load, process fluid type, flow rate, temperatures, wet bulb, coil material, spray water quality, pressure drop, optional fill section and installation space.
| Parameter | Why It Matters |
|---|---|
| Cooling Capacity | Determines tower size and required heat rejection capability. |
| Process Fluid Type | Water, glycol or special fluid affects coil design and pressure drop. |
| Fluid Flow Rate | Affects coil sizing, heat transfer and pump selection. |
| Inlet Fluid Temperature | Defines the hot-side operating condition. |
| Outlet Fluid Temperature | Defines the target cooling result. |
| Wet Bulb Temperature | Key ambient limit for evaporative cooling performance. |
| Coil Material | Affects corrosion resistance, service life and fluid compatibility. |
| Spray Water Quality | Affects scaling, corrosion, nozzle performance and maintenance. |
| Fill / Pre-Cooling Requirement | Determines whether additional heat transfer sections are needed. |
| Installation Space | Influences structure, maintenance access and airflow arrangement. |
| Noise Requirement | Affects fan selection, fan speed and low-noise configuration. |
Key Components
Key Components of a Composite Flow Closed Circuit Cooling Tower
Performance depends on the coil, fluid connections, spray system, fill or pre-cooling section, basin, pump, fan, casing and drift control. Each component should be selected to support enhanced heat rejection and long-term reliability.
Heat Exchange Coil
The core component where process fluid flows and transfers heat through the coil wall.
Fluid Headers and Connections
Distributes process fluid through the coil circuits and connect the tower to the closed loop system.
Spray Water System
Distributes water over the coil surface for evaporative heat transfer.
Spray Pump
Circulates spray water from the basin to the distribution system.
Axial Fan
Moves air through the heat exchange sections and supports evaporation.
Air Inlet Louver
Guides air into the tower and helps reduce splash-out and debris entry.
Drift Eliminator
Reduces water droplets carried out by discharge air.
Spray Water Basin
Collects spray water and supports recirculation.
Casing and Frame
Protects internal components and supports the overall tower structure.
Material Options
Material Options
Material selection affects corrosion resistance, thermal performance, service life and maintenance cost. The best configuration depends on process fluid, water quality, installation environment and project budget.
Coil Materials
Coil material can be selected according to process fluid, corrosion risk, pressure drop and service life requirements.
Galvanized steel coil
Stainless steel coil
Project-specific coil design
Casing and Frame Materials
Casing and structural materials should match outdoor exposure, corrosion environment and export project requirements.
FRP casing
Galvanized steel
Aluzinc steel
Water Contact and Fill Parts
Water contact parts should resist scaling, corrosion and long-term spray water exposure.
PVC fill
Stainless steel basin
PVC drift eliminator
Corrosion-resistant nozzles
Advantages
Performance Advantages
Composite flow closed circuit cooling towers are selected when customers need closed-loop process fluid protection together with enhanced heat rejection and stable industrial operation.
Enhanced Heat Rejection
Multiple heat transfer paths support stronger thermal performance.
Cleaner Closed-Loop Fluid
The process fluid stays inside the coil and is not directly exposed to outside air.
Stable Industrial Operation
Suitable for variable loads, continuous operation and demanding process cooling.
Reduced Internal Fouling
Cleaner process fluid helps reduce fouling risk inside connected equipment.
Flexible Thermal Design
Coil, spray water, airflow and optional fill sections can be configured for project needs.
Material Flexibility
Coil, casing, basin and water-contact materials can be matched to corrosion conditions.
Water / Glycol Compatibility
Can be used with water or glycol solutions according to system design.
Equipment Protection
Helps protect chillers, molds, compressors, furnaces and heat exchangers.
Custom Engineering
Custom Engineering Options
Thermocore can customize composite flow closed circuit cooling towers according to cooling capacity, structure, material, coil design, fill section, airflow, noise, voltage, corrosion environment and export shipping requirements.
Thermal Customization
For projects with special heat load, approach, wet bulb or fluid temperature requirements.
Cooling capacity
Flow rate
Approach temperature
Wet bulb design
Structure Customization
For projects requiring coil sections, fill-assisted cooling, special airflow or low-noise design.
Composite flow layout
Optional fill section
Access doors
Low-noise fans
Material & Export Customization
For corrosion resistance, special voltage, OEM cooperation and international shipping requirements.
Stainless steel coil
FRP casing
Special voltage
Export packaging
Not Sure Whether Composite Flow Is the Right Structure?
Send your cooling capacity, fluid type, flow rate, inlet and outlet temperature, wet bulb temperature and project layout. Our engineering team will compare composite flow, counterflow, crossflow and other cooling options for your project.
Cooling capacity
Fluid type
Flow rate
Wet bulb
Project layout
FAQ
Composite Flow Closed Circuit Cooling Tower FAQ
These FAQs are written for HVAC engineers, contractors, industrial buyers and procurement teams who need to understand composite flow closed circuit cooling tower selection, operation and customization.
What is a composite flow closed circuit cooling tower?
A composite flow closed circuit cooling tower is a closed-loop evaporative cooling system that combines multiple heat transfer paths in one tower structure. The process fluid flows inside a heat exchange coil, while spray water and airflow remove heat from the outside of the coil. Depending on the design, a composite flow tower may combine coil heat exchange with an additional pre-cooling or fill section to improve thermal performance and operating stability.
How does a composite flow closed circuit cooling tower work?
Hot process fluid enters the heat exchange coil and remains isolated inside the coil. Spray water is distributed over the coil surface, and air passes through the tower to support evaporative heat transfer. In a composite flow design, the system may use a combination of coil cooling, spray water evaporation, airflow contact and optional fill-assisted pre-cooling. Heat transfers from the process fluid to the coil wall, then to the spray water and air, allowing cooled process fluid to return to the system.
Why choose a composite flow closed circuit cooling tower?
A composite flow design is often selected when a project requires strong heat rejection, stable closed-loop cooling and flexible thermal performance under demanding conditions. Compared with a simple structure, composite flow design can provide more heat transfer paths and may improve performance for larger loads, variable operating conditions or industrial systems requiring reliable continuous cooling.
What is the difference between composite flow and counterflow closed circuit cooling towers?
A counterflow closed circuit cooling tower mainly uses upward airflow against downward spray water over the coil. A composite flow closed circuit cooling tower may combine different heat transfer sections or airflow-water contact paths, such as coil cooling plus additional pre-cooling or fill-assisted heat exchange. Counterflow design is usually selected for compact vertical heat exchange, while composite flow design is often used when balanced performance, higher capacity or more stable operation is required.
What is the difference between composite flow and crossflow closed circuit cooling towers?
A crossflow closed circuit cooling tower uses horizontal airflow across the coil and spray water section. A composite flow closed circuit cooling tower may combine multiple airflow and water-side heat transfer mechanisms in one system. Crossflow design is often selected for maintenance access and stable side airflow, while composite flow design is selected when the project needs enhanced heat transfer, larger capacity or more flexible thermal configuration.
Is a composite flow closed circuit cooling tower better than an open cooling tower?
It depends on the project. A composite flow closed circuit cooling tower keeps the process fluid inside a coil and helps reduce contamination risk in the main cooling loop. An open cooling tower exposes water directly to air and usually has a lower initial cost. If fluid cleanliness, equipment protection, glycol operation or process loop stability is important, the composite flow closed circuit design may be more suitable.
What information is needed for model selection?
Important selection data includes cooling capacity, process fluid type, fluid flow rate, inlet fluid temperature, required outlet fluid temperature, local wet bulb temperature, glycol concentration if applicable, coil material preference, spray water quality, project location, installation space and noise requirement.
Does the spray water need treatment?
Yes. Although the process fluid is protected inside the coil, the spray water loop is still exposed to air. Water treatment is required to control scaling, corrosion, biological growth and nozzle blockage. Poor spray water quality can reduce heat transfer performance and increase maintenance requirements.
When should I not choose a composite flow closed circuit cooling tower?
If the project has a small cooling load and only needs a simple low-cost solution, an open cooling tower or simpler closed circuit design may be more economical. If the site footprint is extremely limited, a compact counterflow design may be preferred. If water consumption must be minimized, a dry cooler or adiabatic cooler may be considered.
What should I send to get a quotation?
To receive an accurate quotation, send the cooling capacity, process fluid type, fluid flow rate, inlet and outlet fluid temperatures, design wet bulb temperature, project location, power supply, installation space, material preference and any noise, corrosion or customization requirements.
Start Your Project
Need a Composite Flow Closed Circuit Cooling Tower for Your Project?
Send us your cooling capacity, process fluid type, flow rate, inlet and outlet temperature, wet bulb temperature and project location. Our engineering team will help you select a suitable composite flow closed circuit cooling tower configuration.
